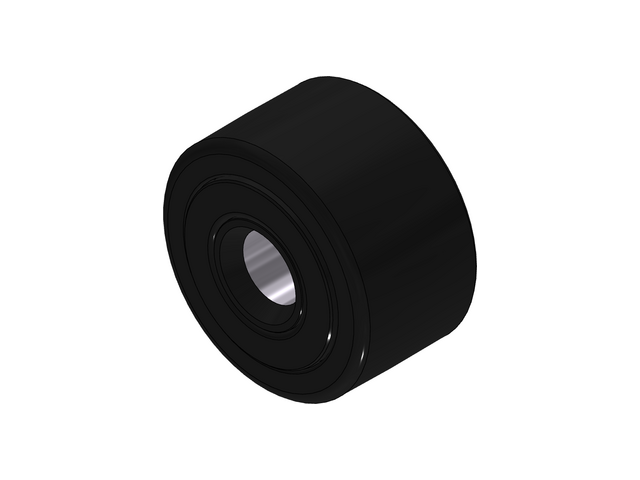

CNYR-48

CNYR -Standard Neverlube Cam Yolk Roller Crowned

Please call 616-842-8760 for price and availability

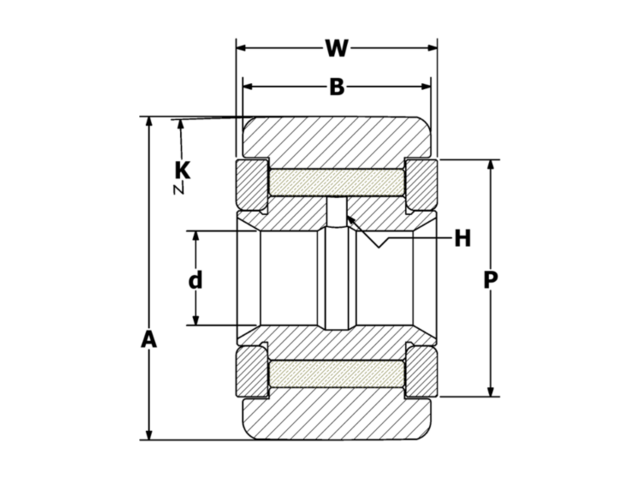

Specifications

ID CNYR-48
Roller O.D. A 1.500
Roller Width B 0.875
Crown Radius K 20
Bore Diameter d 0.438
Overall Width W 0.9375
Oil Hole Diameter H 3/32
Min. Boss Diameter P 57/64
Shaft Diameter (recommended) 0.4372
Load Factor 0.510

Downloads

CNYR-48 STP File

CNYR-48 IGES File

CNYR-48 PDF File

3D View
