CNYR-40

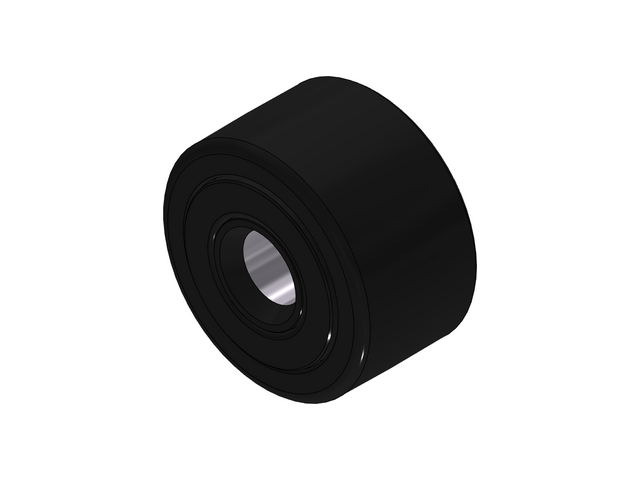

CNYR -Standard Neverlube Cam Yoke Roller Crowned

2D Drawings

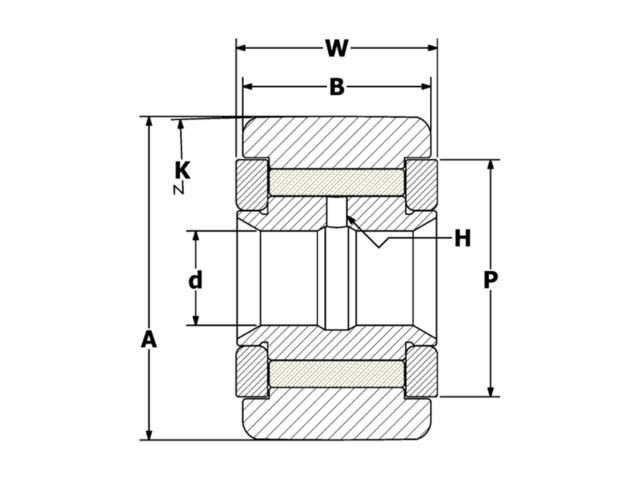

CNYR-40 2D CAD Drawing

Specifications

ID CNYR-40
Roller O.D. A 1.250
Roller Width B 0.750
Crown Radius K 14
Bore Diameter d 0.375
Overall Width W 0.8125
Oil Hole Diameter H 3/32
Min. Boss Diameter P 49/64
Shaft Diameter (recommended) 0.3747
Load Factor 0.390

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
