CNYR-36

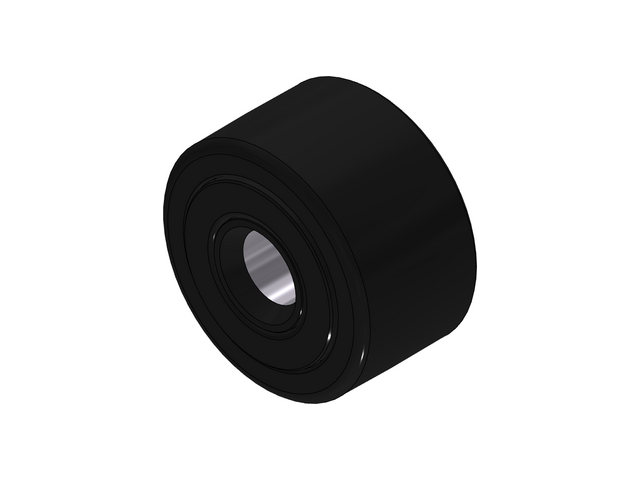

CNYR -Standard Neverlube Cam Yolk Roller Crowned

Please call 616-842-8760 for price and availability

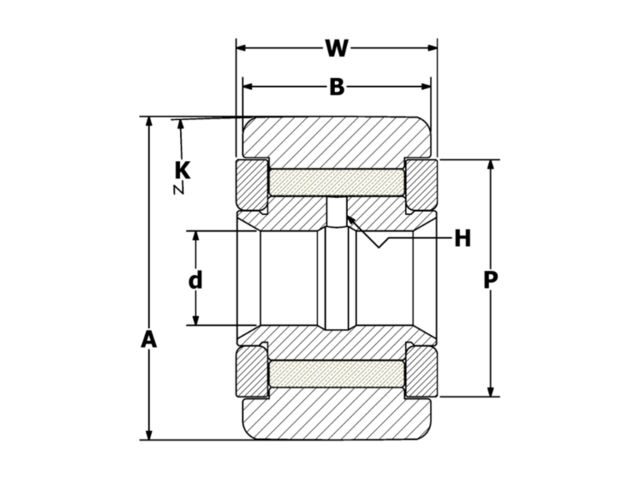

Specifications

ID CNYR-36
Roller O.D. A 1.125
Roller Width B 0.625
Crown Radius K 12
Bore Diameter d 0.313
Overall Width W 0.6875
Oil Hole Diameter H 3/32
Min. Boss Diameter P 41/64
Shaft Diameter (recommended) 0.3122
Load Factor 0.250

Downloads

CNYR-36 2D CAD Drawing

3D View
