CNYR-28

CNYR -Standard Neverlube Cam Yoke Roller Crowned

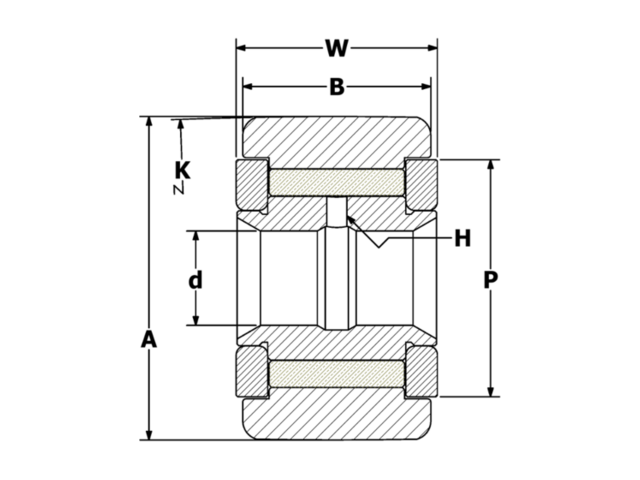

2D Drawings

CNYR-28 2D CAD Drawing

Specifications

ID CNYR-28
Roller O.D. A 0.875
Roller Width B 0.500
Crown Radius K 10
Bore Diameter d 0.250
Overall Width W 0.5625
Oil Hole Diameter H 3/32
Min. Boss Diameter P 1/2
Shaft Diameter (recommended) 0.2497
Load Factor 0.190

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
