CNYR-128

CNYR -Standard Neverlube Cam Yolk Roller Crowned

Please call 616-842-8760 for price and availability

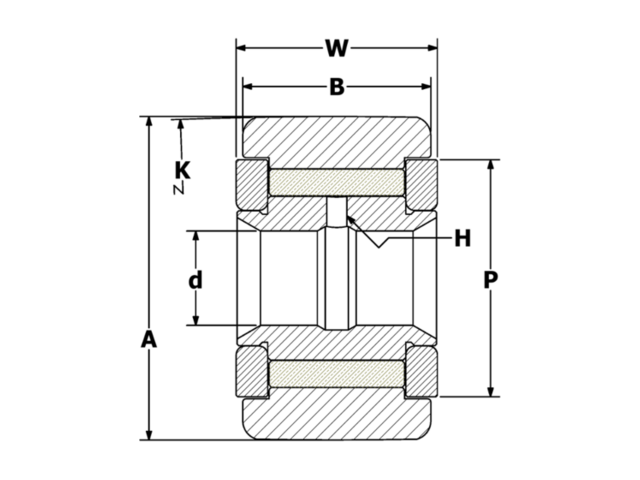

Specifications

ID CNYR-128
Roller O.D. A 4.000
Roller Width B 2.250
Crown Radius K 30
Bore Diameter d 1.250
Overall Width W 2.3125
Oil Hole Diameter H 1/8
Min. Boss Diameter P 2 9/32
Shaft Diameter (recommended) 1.2496
Load Factor 3.250

Downloads

CNYR-128 STP File

CNYR-128 IGES File

CNYR-128 PDF File

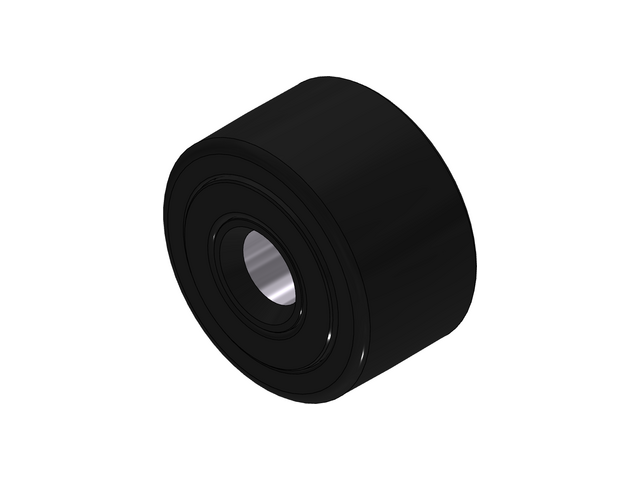

3D View
