CNYR-112

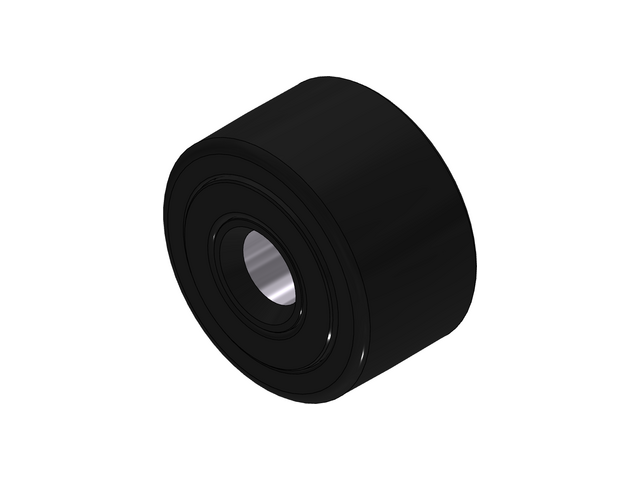

CNYR -Standard Neverlube Cam Yolk Roller Crowned

Please call 616-842-8760 for price and availability

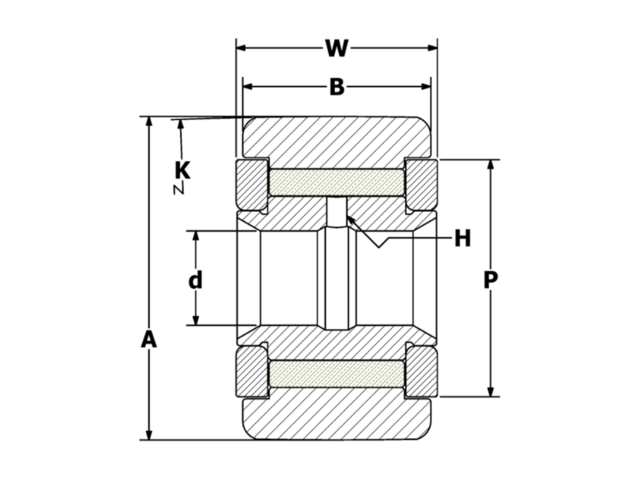

Specifications

ID CNYR-112
Roller O.D. A 3.500
Roller Width B 2.000
Crown Radius K 30
Bore Diameter d 1.125
Overall Width W 2.0625
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 59/64
Shaft Diameter (recommended) 1.1246
Load Factor 2.700

Downloads

CNYR-112 STP File

CNYR-112 IGES File

CNYR-112 PDF File

3D View
