CNBH-96-B

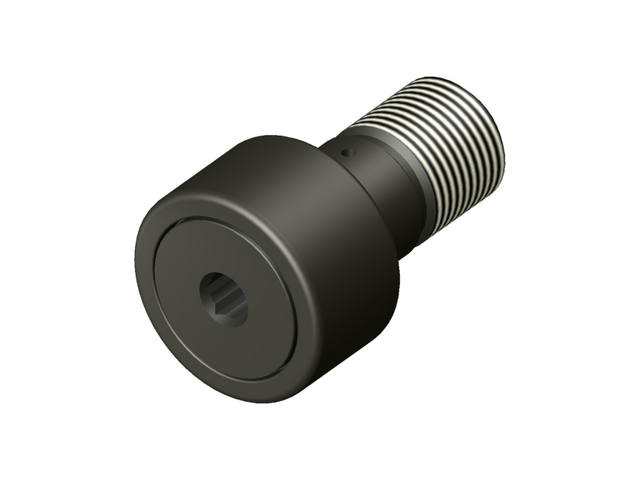

CNBH-B -Standard Heavy Duty Hexed Unsealed Cam Follower

Specifications

ID CNBH-96-B
Roller O.D. A 3.000
Roller Width B 1.750
Stud Diameter C 1.500
Stud Length D 2.500
M.E.T. E 1 1/4
Thread Class 2A F 1 1/2-12
Oil Hole Center G 5/8
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Min. Boss Diameter 1 3/4
Mounting Bore Diameter (recommended) 1.500
**Recom. Torque Inch Pounds 5,000
Max Static Capacity (lbf) 49,820
Basic Dynamic Rating (lbf) 15,720
