CNBH-48

CNBH -Standard Heavy Duty Slotted Unsealed Cam Follower

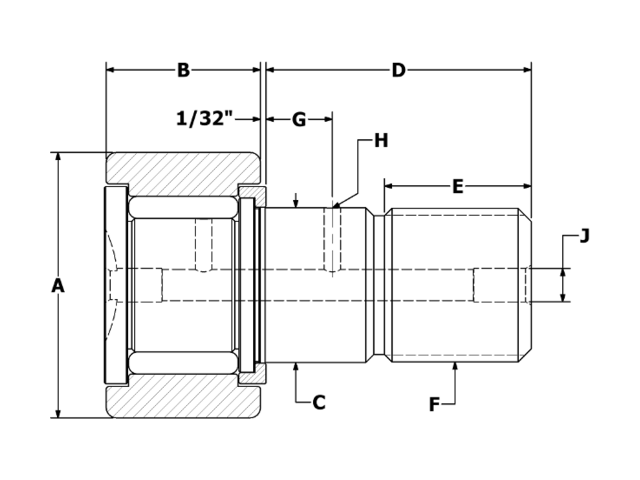

Specifications

ID CNBH-48
Roller O.D. A 1.500
Roller Width B 0.875
Stud Diameter C 0.875
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 7/8-14
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.875
**Recom. Torque Inch Pounds 1,500
Max Static Capacity (lbf) 11,280
Basic Dynamic Rating (lbf) 4,840
