CNBH-36

CNBH -Standard Heavy Duty Slotted Unsealed Cam Follower

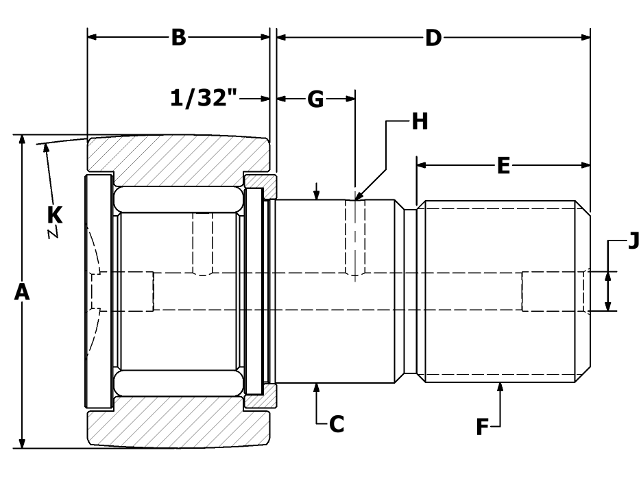

Specifications

ID CNBH-36
Roller O.D. A 1.125
Roller Width B 0.625
Stud Diameter C 0.625
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 5/8-18
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.625
**Recom. Torque Inch Pounds 650
Max Static Capacity (lbf) 6,120
Basic Dynamic Rating (lbf) 2,225
