CNBH-24-B

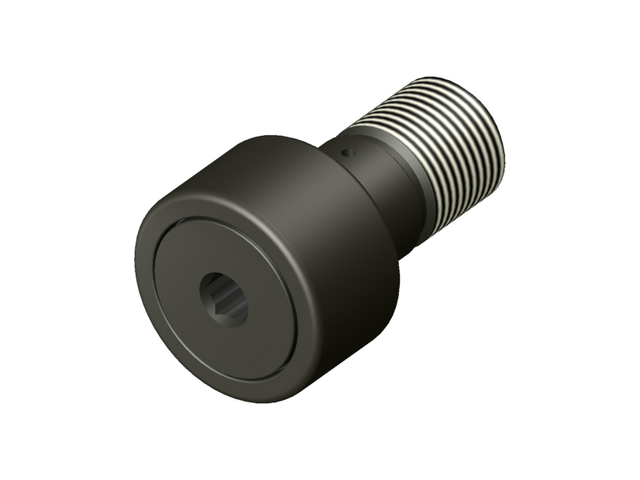

CNBH-B -Standard Heavy Duty Hexed Unsealed Cam Follower

Specifications

ID CNBH-24-B

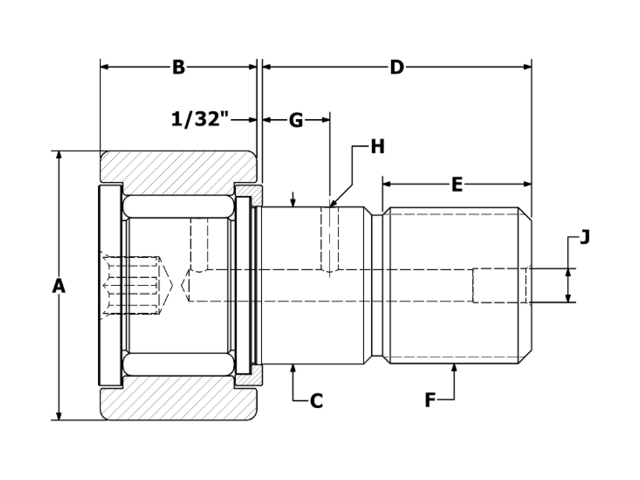

Roller O.D. A 0.750
Roller Width B 0.500
Stud Diameter C 0.4375
Stud Length D 0.875
M.E.T. E 3/8
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 250
Max Static Capacity (lbf) 4,130
Basic Dynamic Rating (lbf) 1,660

Downloads

CNBH-24-B STP File

CNBH-24-B IGES File

CNBH-24-B PDF File

3D View
