CNBH-112

CNBH -Standard Heavy Duty Slotted Unsealed Cam Follower

Specifications

ID CNBH-112

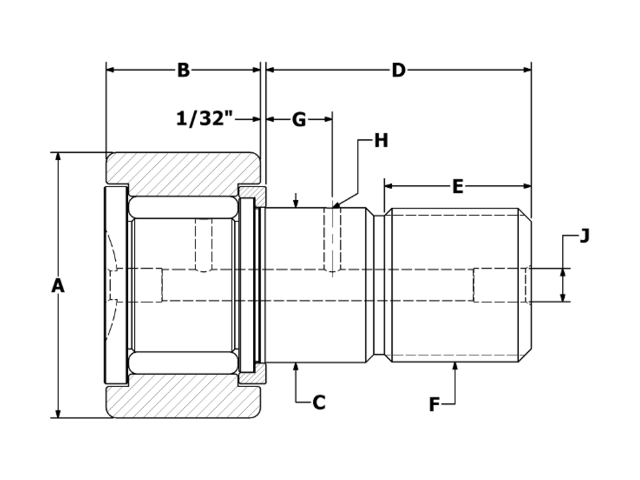

Roller O.D. A 3.500
Roller Width B 2.000
Stud Diameter C 1.750
Stud Length D 2.750
M.E.T. E 1 3/8
Thread Class 2A F 1 3/4-12
Oil Hole Center G 11/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Min. Boss Diameter 1 59/64
Mounting Bore Diameter (recommended) 1.750
**Recom. Torque Inch Pounds 5,000
Max Static Capacity (lbf) 63,250
Basic Dynamic Rating (lbf) 22,800
