CNBE-88-S

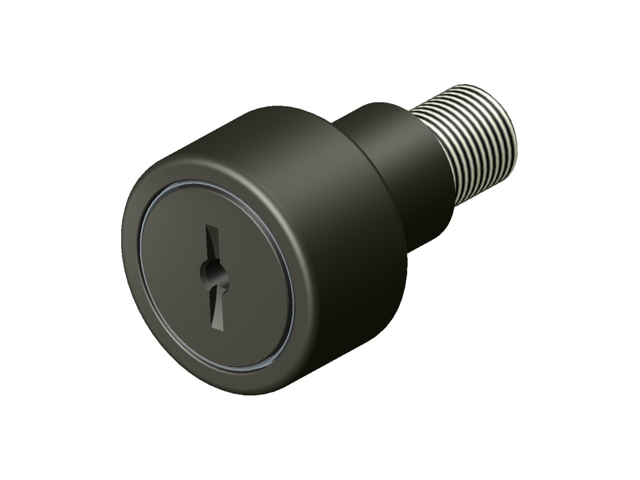

CNBE-S -Standard Slotted Eccentric Sealed Cam Follower

Specifications

ID CNBE-88-S
Roller O.D. A 2.750
Roller Width B 1.500
Stud Diameter C 1.000
Stud Length D 2.250
Thread Length E 1 1/8
Thread Class 2A F 1-14
Oil Hole Center G 9/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Bushing Length L 1.125
Bushing Diameter M 1.375
Eccentric offset N 0.030
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.378
**Recom. Torque Inch Pounds 2,250
Max Static Capacity (lbf) 16,450
Basic Dynamic Rating (lbf) 11,720
