CNB-88-B

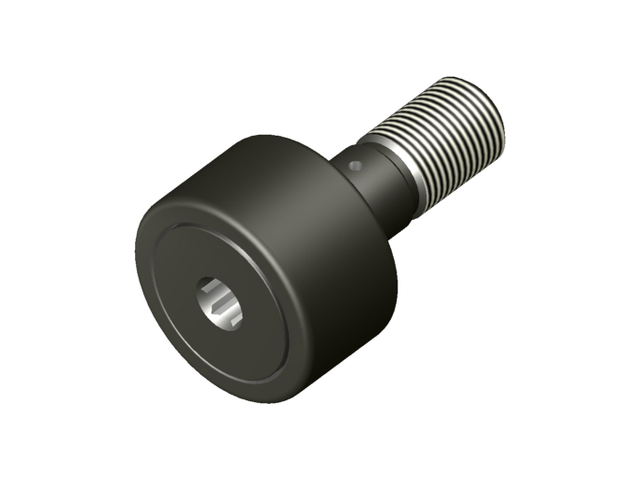

CNB-B -Standard Hexed Unsealed Cam Follower

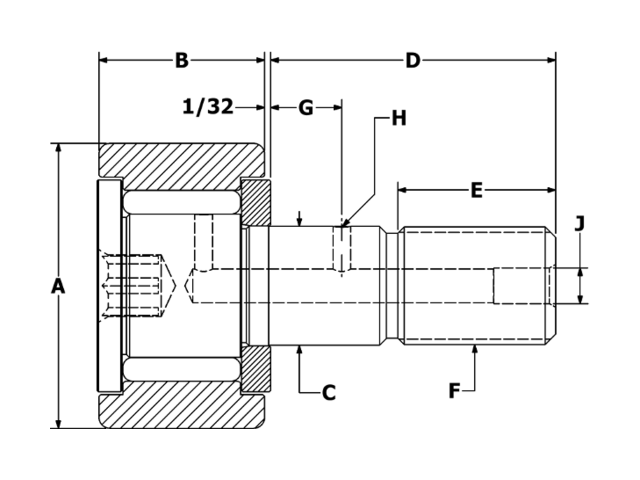

Specifications

ID CNB-88-B
Roller O.D. A 2.750
Roller Width B 1.500
Stud Diameter C 1.000
Stud Length D 2.250
M.E.T. E 1 1/8
Thread Class 2A F 1-14
Oil Hole Center G 9/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.000
**Recom. Torque Inch Pounds 2,250
Max Static Capacity (lbf) 16,450
Basic Dynamic Rating (lbf) 11,720
