CNB-64-SB

CNB-SB -Standard Hexed Sealed Cam Follower

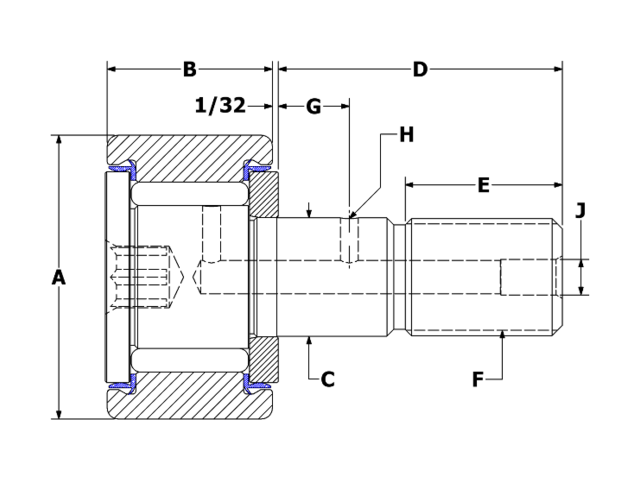

Specifications

ID CNB-64-SB
Roller O.D. A 2.000
Roller Width B 1.250
Stud Diameter C 0.875
Stud Length D 2.000
M.E.T. E 1
Thread Class 2A F 7/8-14
Oil Hole Center G 1/2
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Min. Boss Diameter 1 13/64
Mounting Bore Diameter (recommended) 0.875
**Recom. Torque Inch Pounds 1,500
Max Static Capacity (lbf) 10,570
Basic Dynamic Rating (lbf) 8,090
