CNB-60-SB

CNB-SB -Standard Hexed Sealed Cam Follower

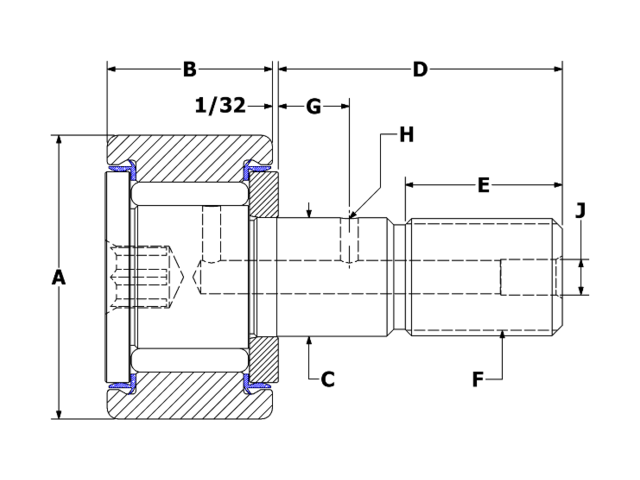

Specifications

ID CNB-60-SB
Roller O.D. A 1.875
Roller Width B 1.000
Stud Diameter C 0.750
Stud Length D 1.750
M.E.T. E 7/8
Thread Class 2A F 3/4-16
Oil Hole Center G 7/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 0.750
**Recom. Torque Inch Pounds 1,250
Max Static Capacity (lbf) 7,920
Basic Dynamic Rating (lbf) 6,385
