CNB-28-B

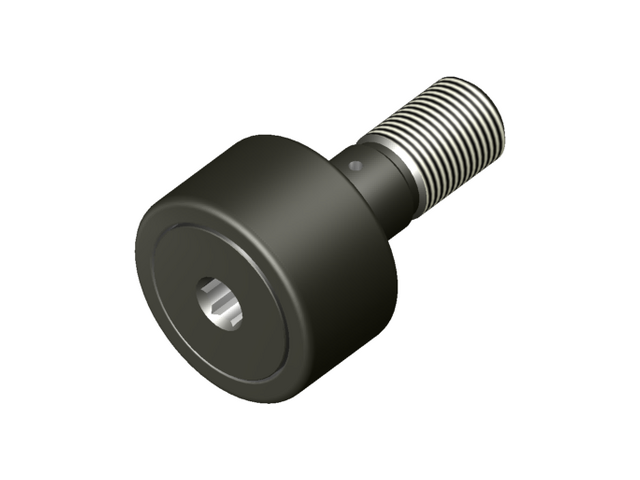

CNB-B -Standard Hexed Unsealed Cam Follower

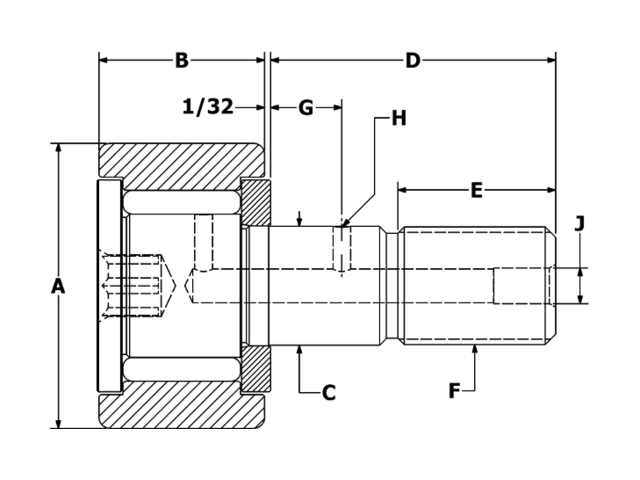

Specifications

ID CNB-28-B
Roller O.D. A 0.875
Roller Width B 0.500
Stud Diameter C 0.375
Stud Length D 0.875
M.E.T. E 3/8
Thread Class 2A F 3/8-24
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.375
**Recom. Torque Inch Pounds 95
Max Static Capacity (lbf) 2,065
Basic Dynamic Rating (lbf) 1,660
