CNB-SB -Standard Hexed Sealed Cam Follower

PDF Download

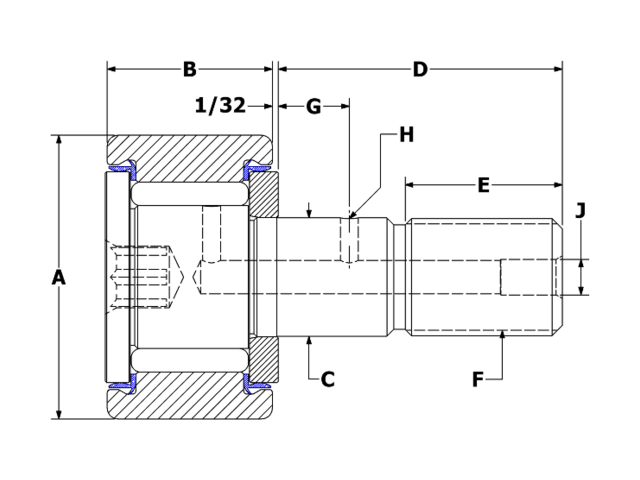

CNB-256-SB 2D CAD Drawing


Roller O.D. A 8.000
Roller Width B 4.250
Stud Diameter C 3.250
Stud Length D 8.500
M.E.T. E 4 1/4
Thread Class 2A F 3 1/4-4
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J 1/4 N.P.T.
Min. Boss Diameter 4 3/4
Mounting Bore Diameter (recommended) 3.250
**Recom. Torque Inch Pounds 2500
Max Static Capacity (lbf) 144,100
Basic Dynamic Rating (lbf) 92,200
Limiting Speed (RPM) 350

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
