CNB-224-SB

CNB-SB -Standard Hexed Sealed Cam Follower

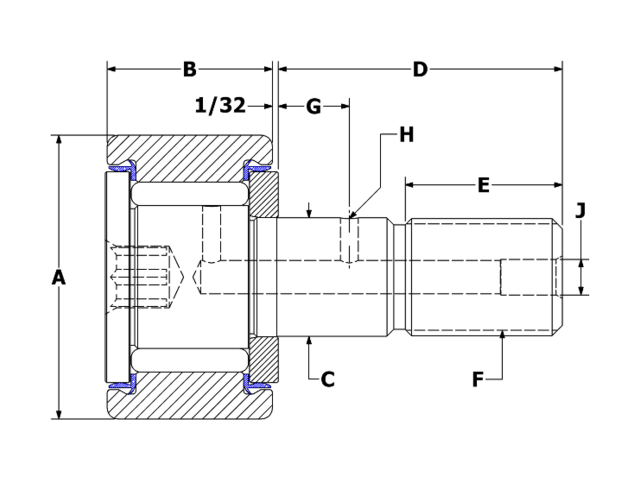

Specifications

ID CNB-224-SB
Roller O.D. A 7.000
Roller Width B 3.750
Stud Diameter C 3.000
Stud Length D 7.687
M.E.T. E 4 1/8
Thread Class 2A F 3-12
Oil Hole Center G 1 1/4
Oil Hole Diameter H 3/16
Lube Fitting Size J 1/4 N.P.T.
Min. Boss Diameter 3 7/8
Mounting Bore Diameter (recommended) 3.000
**Recom. Torque Inch Pounds 5,000
Max Static Capacity (lbf) 106,930
Basic Dynamic Rating (lbf) 75,380
