CNB-22-B

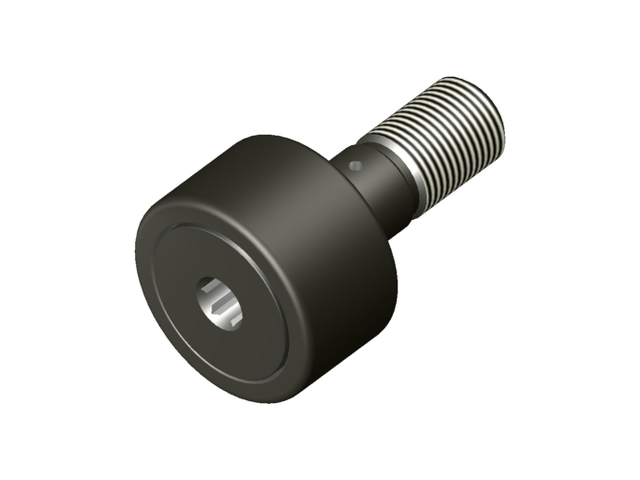

CNB-B -Standard Hexed Unsealed Cam Follower

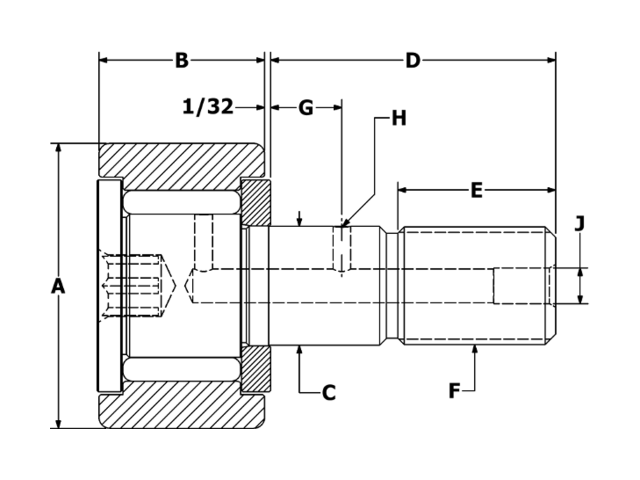

Specifications

ID CNB-22-B
Roller O.D. A 0.688
Roller Width B 0.4375
Stud Diameter C 0.250
Stud Length D 0.750
M.E.T. E 5/16
Thread Class 2A F 1/4-28
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.250
**Recom. Torque Inch Pounds 35
Max Static Capacity (lbf) 1,215
Basic Dynamic Rating (lbf) 955

Downloads

CNB-22-B STP File

CNB-22-B IGES File

CNB-22-B PDF File

3D View
