CNB-16-NB

CNB-B -Standard Hexed Unsealed Cam Follower

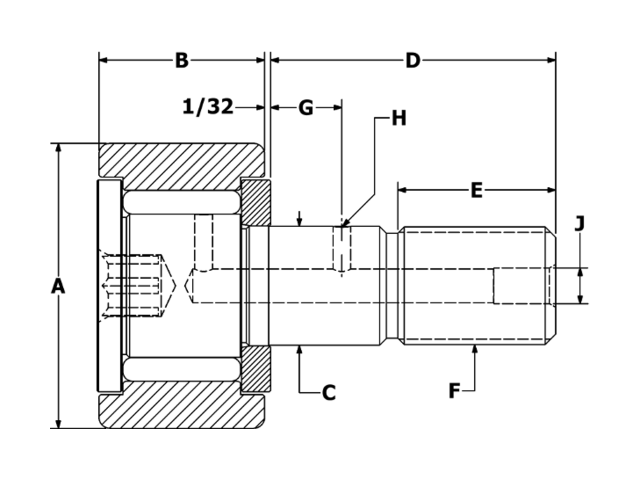

Specifications

ID CNB-16-NB
Roller O.D. A 0.500
Roller Width B 0.344
Stud Diameter C 0.190
Stud Length D 0.500
M.E.T. E 1/4
Thread Class 2A F 10-32
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.190
**Recom. Torque Inch Pounds 15
Max Static Capacity (lbf) 720
Basic Dynamic Rating (lbf) 620
