CNB-112-SB

CNB-SB -Standard Hexed Sealed Cam Follower

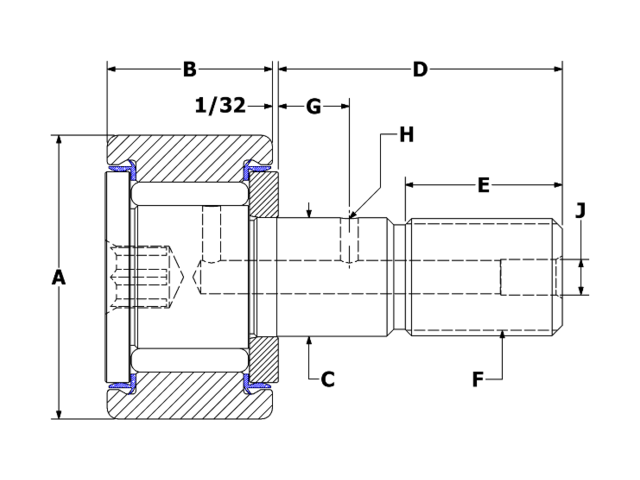

Specifications

ID CNB-112-SB
Roller O.D. A 3.500
Roller Width B 2.000
Stud Diameter C 1.375
Stud Length D 2.750
M.E.T. E 1 3/8
Thread Class 2A F 1 3/8-12
Oil Hole Center G 11/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Min. Boss Diameter 1 59/64
Mounting Bore Diameter (recommended) 1.375
**Recom. Torque Inch Pounds 4,200
Max Static Capacity (lbf) 31,625
Basic Dynamic Rating (lbf) 22,800
