CNB-104-B

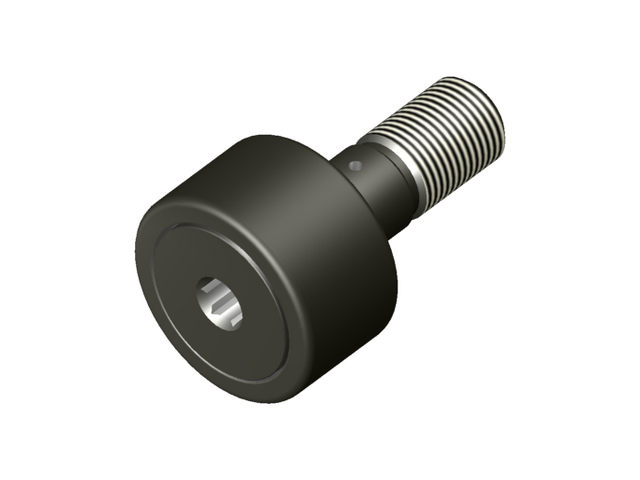

CNB-B -Standard Hexed Unsealed Cam Follower

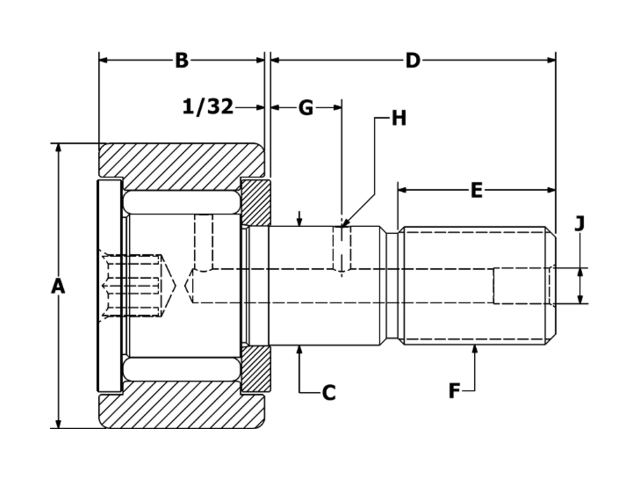

Specifications

ID CNB-104-B
Roller O.D. A 3.250
Roller Width B 1.750
Stud Diameter C 1.250
Stud Length D 2.500
M.E.T. E 1 1/4
Thread Class 2A F 1 1/4-12
Oil Hole Center G 5/8
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Min. Boss Diameter 1 3/4
Mounting Bore Diameter (recommended) 1.250
**Recom. Torque Inch Pounds 3,450
Max Static Capacity (lbf) 24,910
Basic Dynamic Rating (lbf) 15,720
