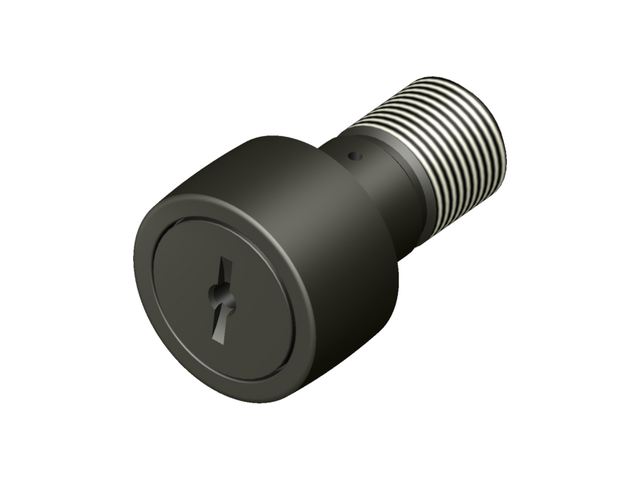

CCNBH -Standard Heavy Duty Crowned Slotted Unsealed Cam Follower

PDF Download

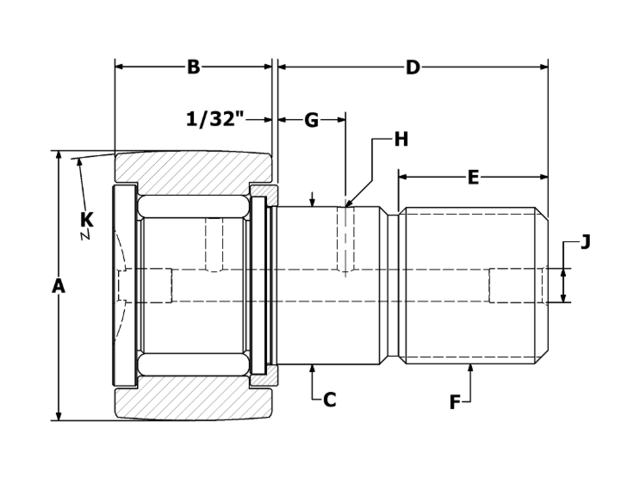

CCNBH-80 2D CAD Drawing


Roller O.D. A 2.500
Roller Width B 1.500
Crown Radius K 24
Stud Diameter C 1.250
Stud Length D 2.250
M.E.T. E 1 1/8
Thread Class 2A F 1 1/4-12
Oil Hole Center G 9/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.250
**Recom. Torque Inch Pounds 1725
Max Static Capacity (lbf) 32,900
Basic Dynamic Rating (lbf) 11,720
Limiting Speed (RPM) 1,100

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
