CCNBH-B -Standard Heavy Duty Crowned Hexed Unsealed Cam Follower

PDF Download

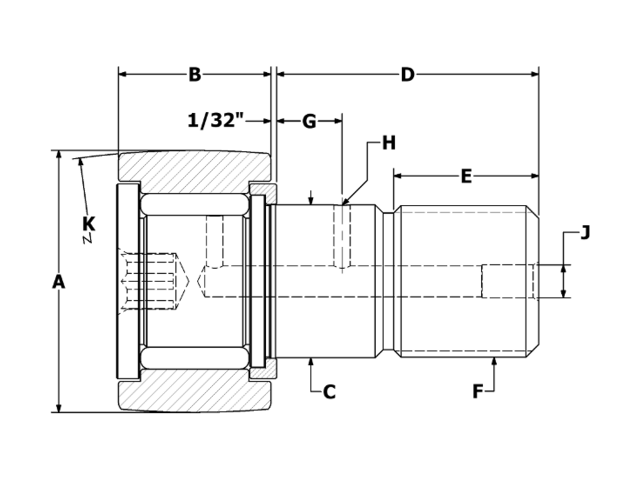

CCNBH-60-B 2D CAD Drawing


Roller O.D. A 1.875
Roller Width B 1.000
Crown Radius K 20
Stud Diameter C 1.000
Stud Length D 1.750
M.E.T. E 7/8
Thread Class 2A F 1-14
Oil Hole Center G 7/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 1.000
**Recom. Torque Inch Pounds 1125
Max Static Capacity (lbf) 15,840
Basic Dynamic Rating (lbf) 6,385
Limiting Speed (RPM) 2,000

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
