CCNBH-44-S

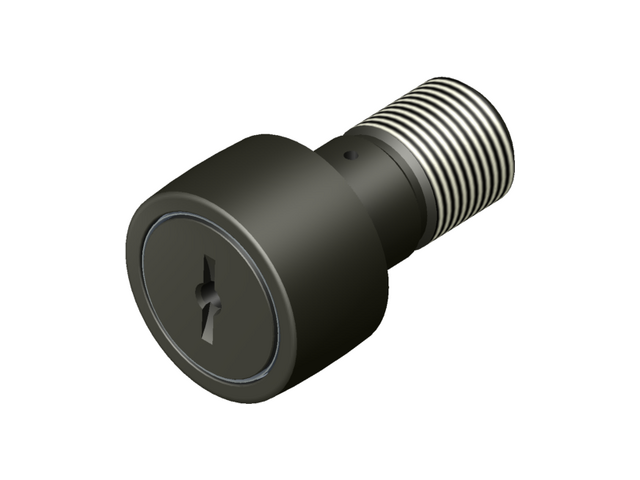

CCNBH-S -Standard Heavy Duty Crowned Slotted Sealed Cam Follower

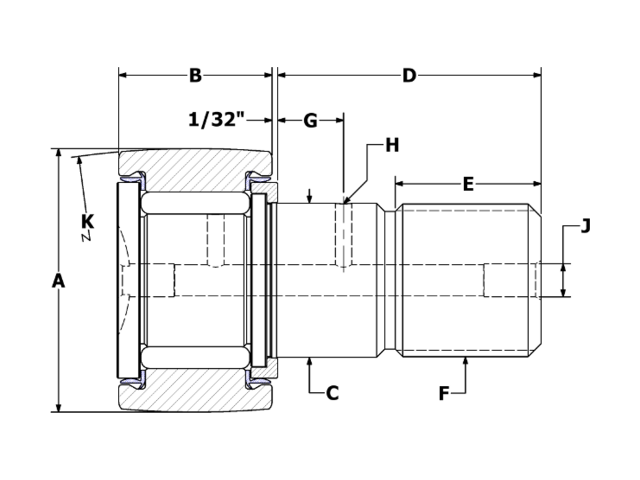

Specifications

ID CCNBH-44-S
Roller O.D. A 1.375
Roller Width B 0.750
Crown Radius K 12
Stud Diameter C 0.750
Stud Length D 1.250
M.E.T. E 5/8
Thread Class 2A F 3/4-16
Oil Hole Center G 5/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 49/64
Mounting Bore Diameter (recommended) 0.750
**Recom. Torque Inch Pounds 1,250
Max Static Capacity (lbf) 8,500
Basic Dynamic Rating (lbf) 3,930
