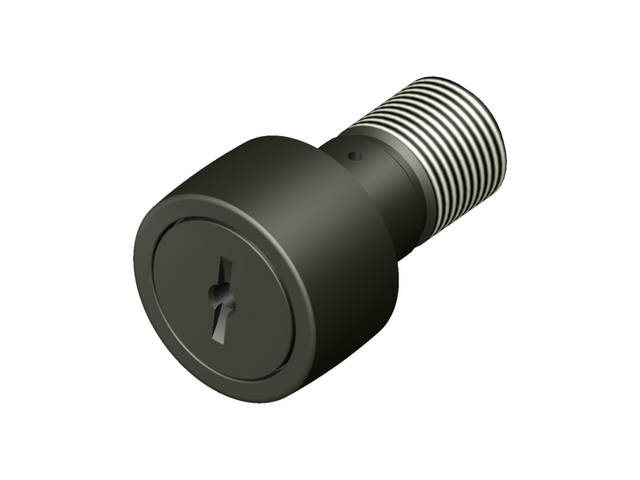

CCNBH -Standard Heavy Duty Crowned Slotted Unsealed Cam Follower

PDF Download

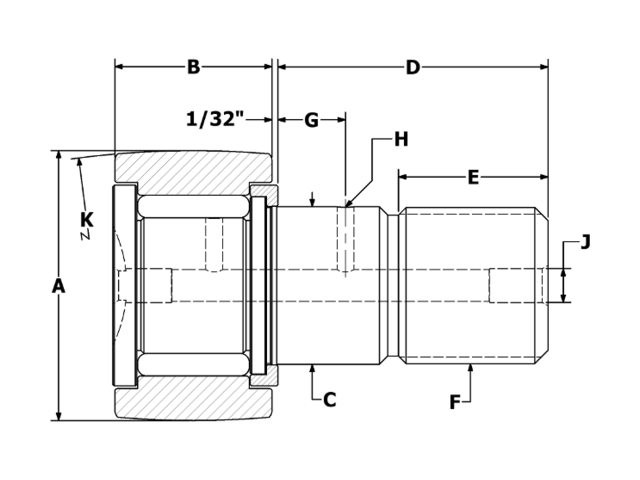

CCNBH-28 2D CAD Drawing


Roller O.D. A 0.875
Roller Width B 0.500
Crown Radius K 8
Stud Diameter C 0.4375
Stud Length D 0.875
M.E.T. E 3/8
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 125
Max Static Capacity (lbf) 4,130
Basic Dynamic Rating (lbf) 1,660
Limiting Speed (RPM) 5,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
