CCNBH-24-B

CCNBH-B -Standard Heavy Duty Crowned Hexed Unsealed Cam Follower

Please call 616-842-8760 for price and availability

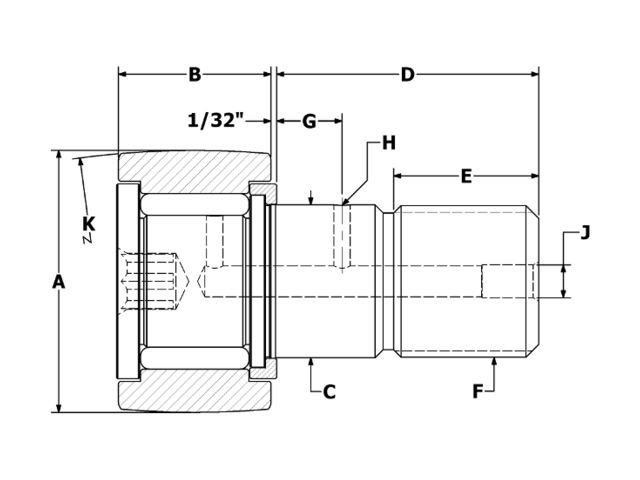

Specifications

ID CCNBH-24-B
Roller O.D. A 0.750
Roller Width B 0.500
Crown Radius K 8
Stud Diameter C 0.4375
Stud Length D 0.875
M.E.T. E 3/8
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 250
Max Static Capacity (lbf) 4,130
Basic Dynamic Rating (lbf) 1,660
