CCNBH-224-B

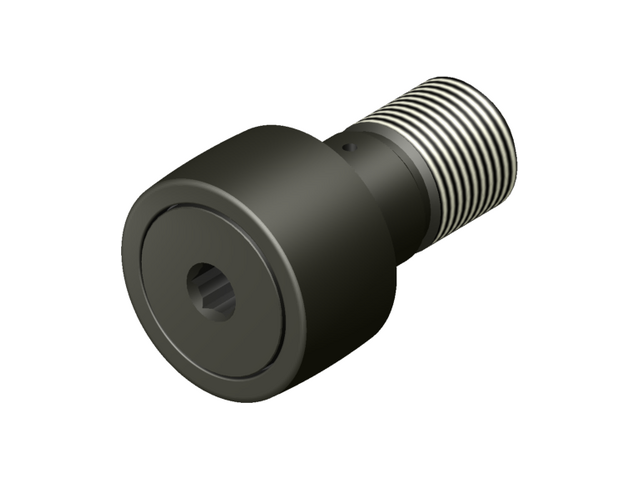

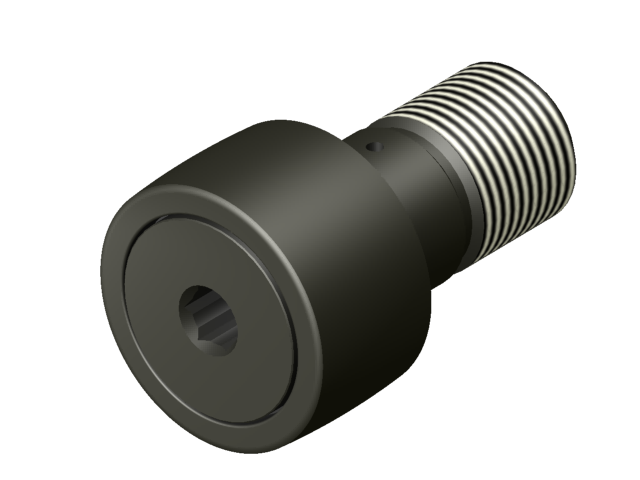

CCNBH-B -Standard Heavy Duty Crowned Hexed Unsealed Cam Follower

Please call 616-842-8760 for price and availability

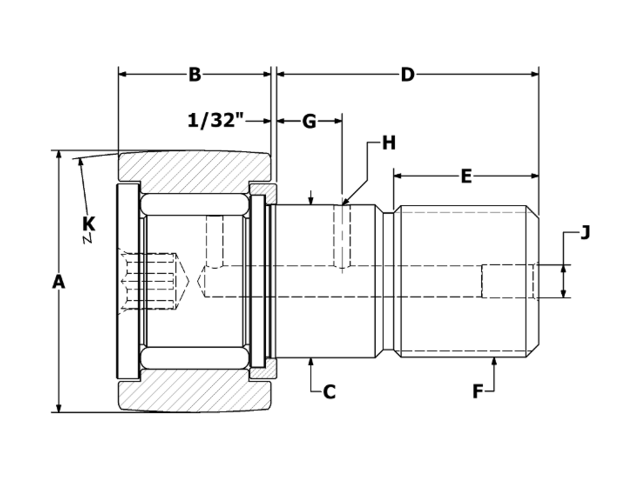

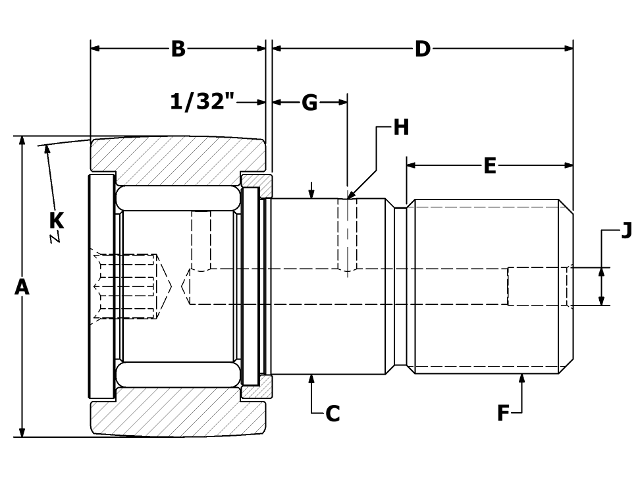

Specifications

ID CCNBH-224-B
Roller O.D. A 7.000
Roller Width B 3.750
Crown Radius K 48
Stud Diameter C 3.500
Stud Length D 7.687
M.E.T. E 4 1/8
Thread Class 2A F 3 1/2-4
Oil Hole Center G 1 1/4
Oil Hole Diameter H 3/16
Lube Fitting Size J 1/4 N.P.T.
Min. Boss Diameter 5 3/16
Mounting Bore Diameter (recommended) 3.000
**Recom. Torque Inch Pounds 5,000
Max Static Capacity (lbf) 213,860
Basic Dynamic Rating (lbf) 75,380

Downloads

CCNBH-224-B STP File

CCNBH-224-B IGES File

CCNBH-224-B PDF File

3D View
