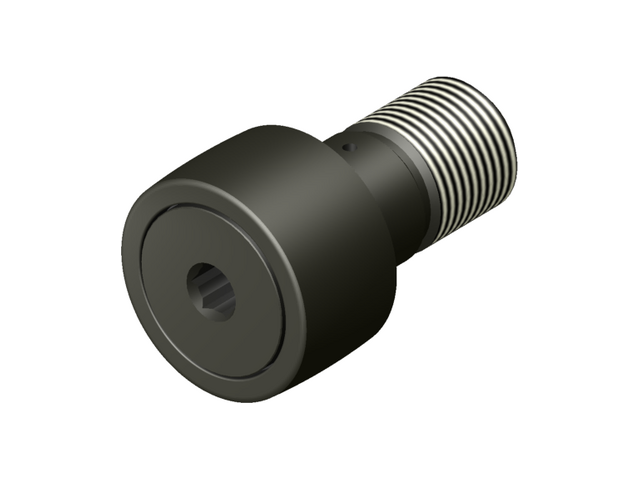

CCNBH-B -Standard Heavy Duty Crowned Hexed Unsealed Cam Follower

PDF Download

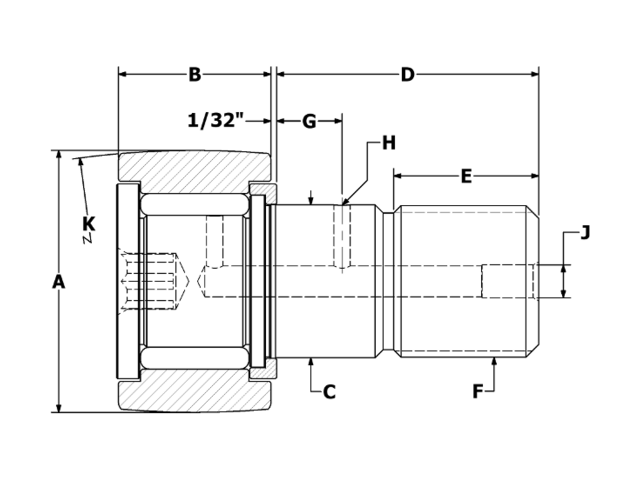

CCNBH-22-B 2D CAD Drawing


Roller O.D. A 0.688
Roller Width B 0.4375
Crown Radius K 8
Stud Diameter C 0.313
Stud Length D 0.750
M.E.T. E 5/16
Thread Class 2A F 5/16-24
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.313
**Recom. Torque Inch Pounds 45
Max Static Capacity (lbf) 2,480
Basic Dynamic Rating (lbf) 955
Limiting Speed (RPM) 8,300

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
