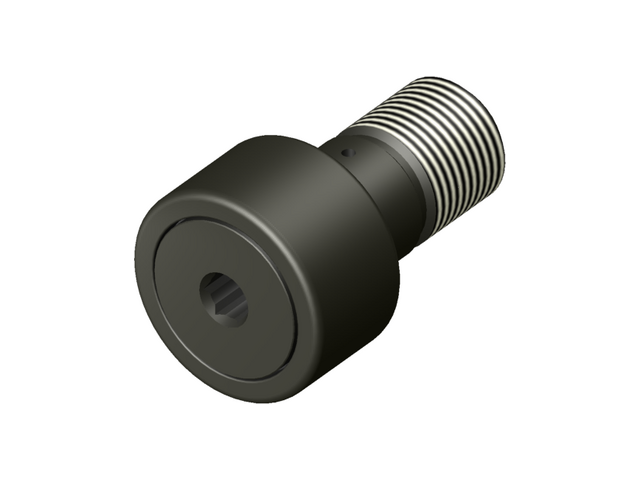

CCNBH-B -Standard Heavy Duty Crowned Hexed Unsealed Cam Follower

PDF Download

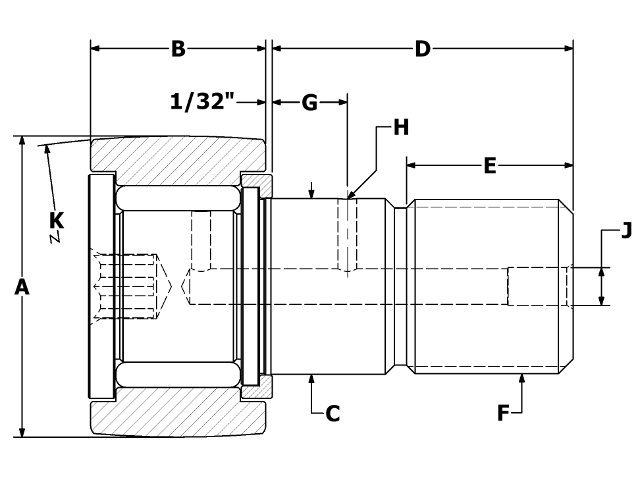

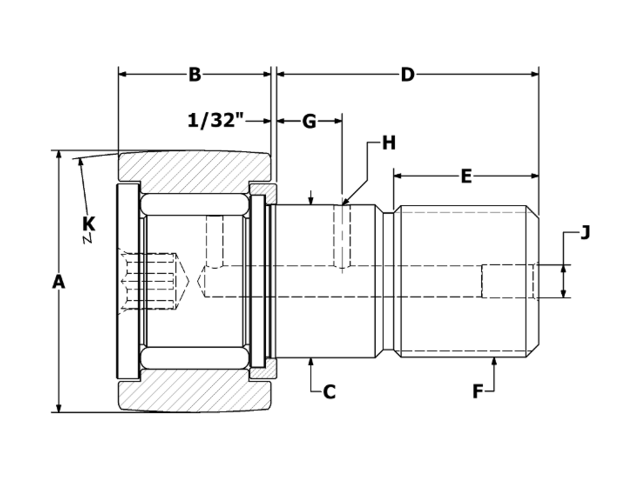

CCNBH-192-B 2D CAD Drawing


Roller O.D. A 6.000
Roller Width B 3.250
Crown Radius K 30
Stud Diameter C 3.000
Stud Length D 6.000
M.E.T. E 3
Thread Class 2A F 3-12
Oil Hole Center G 1
Oil Hole Diameter H 3/16
Lube Fitting Size J 1/4 N.P.T.
Min. Boss Diameter 4 15/32
Mounting Bore Diameter (recommended) 2.500
**Recom. Torque Inch Pounds 2500
Max Static Capacity (lbf) 160,900
Basic Dynamic Rating (lbf) 60,000
Limiting Speed (RPM) 475

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
