CCNBH-B -Standard Heavy Duty Crowned Hexed Unsealed Cam Follower

PDF Download

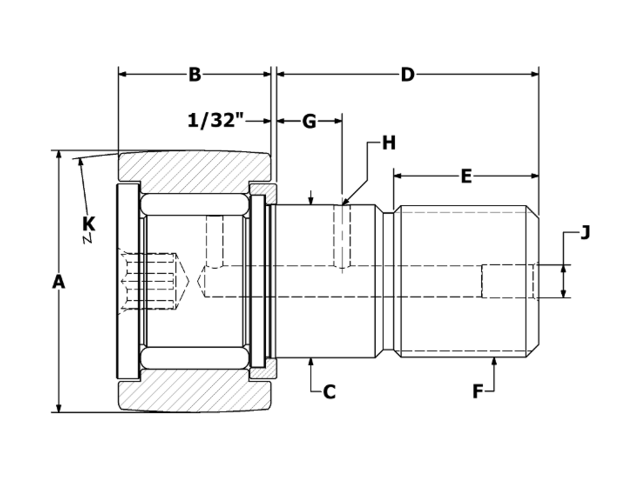

CCNBH-160-B 2D CAD Drawing


Roller O.D. A 5.000
Roller Width B 2.750
Crown Radius K 30
Stud Diameter C 2.500
Stud Length D 5.062
M.E.T. E 2 9/16
Thread Class 2A F 2 1/2-12
Oil Hole Center G 7/8
Oil Hole Diameter H 3/16
Lube Fitting Size J 1/4 N.P.T.
Min. Boss Diameter 3 9/16
Mounting Bore Diameter (recommended) 2.000
**Recom. Torque Inch Pounds 2500
Max Static Capacity (lbf) 135,900
Basic Dynamic Rating (lbf) 46,575
Limiting Speed (RPM) 575

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
