CCNBH-16

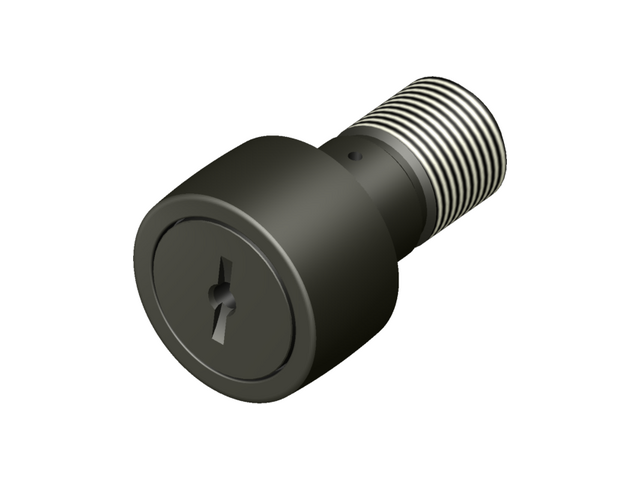

CCNBH -Standard Heavy Duty Crowned Slotted Unsealed Cam Follower

Please call 616-842-8760 for price and availability

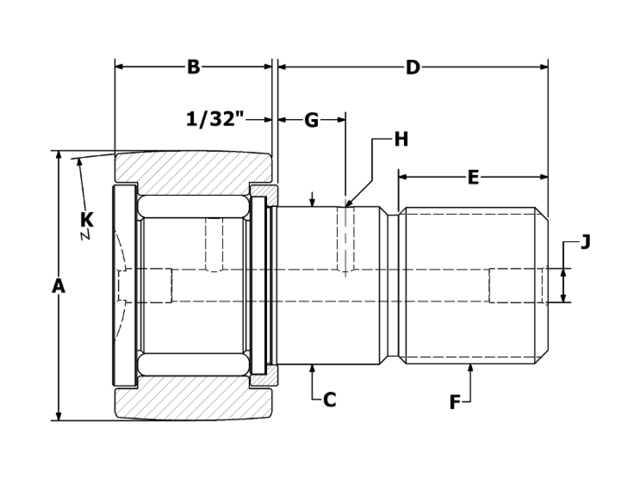

Specifications

ID CCNBH-16
Roller O.D. A 0.500
Roller Width B 0.375
Crown Radius K 7
Stud Diameter C 0.250
Stud Length D 0.625
M.E.T. E 1/4
Thread Class 2A F 1/4-28
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J 1/8
Min. Boss Diameter 13/32
Mounting Bore Diameter (recommended) 0.250
**Recom. Torque Inch Pounds 35
Max Static Capacity (lbf) 1,580
Basic Dynamic Rating (lbf) 680
