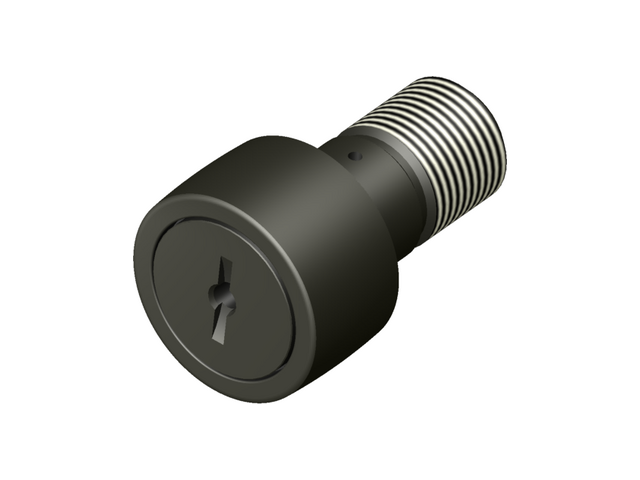

CCNBH -Standard Heavy Duty Crowned Slotted Unsealed Cam Follower

PDF Download

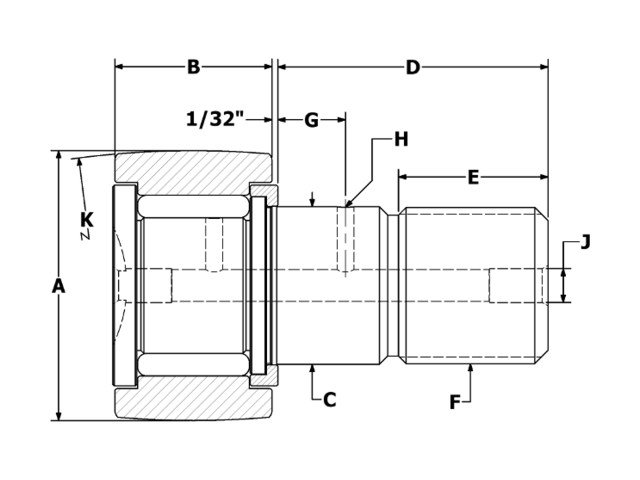

CCNBH-128 2D CAD Drawing


Roller O.D. A 4.000
Roller Width B 2.250
Crown Radius K 30
Stud Diameter C 2.000
Stud Length D 3.500
M.E.T. E 1 1/2
Thread Class 2A F 2-12
Oil Hole Center G 3/4
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Min. Boss Diameter 2 9/32
Mounting Bore Diameter (recommended) 2.000
**Recom. Torque Inch Pounds 2500
Max Static Capacity (lbf) 89,540
Basic Dynamic Rating (lbf) 29,985
Limiting Speed (RPM) 700

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
