CCNBE-60-B

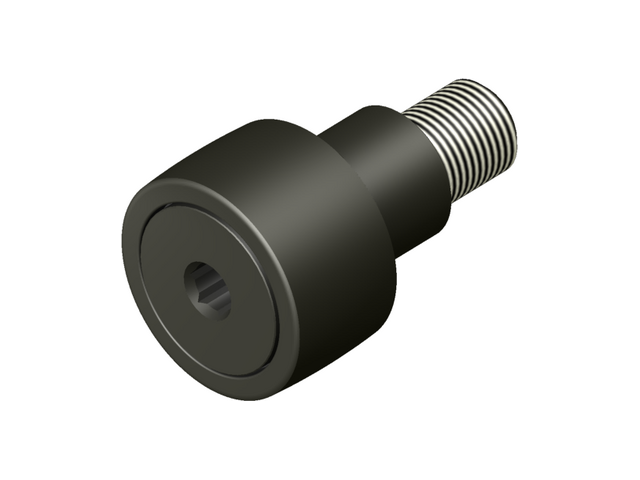

CCNBE-B -Standard Crowned Hexed Eccentric Unsealed Cam Follower

2D Drawings

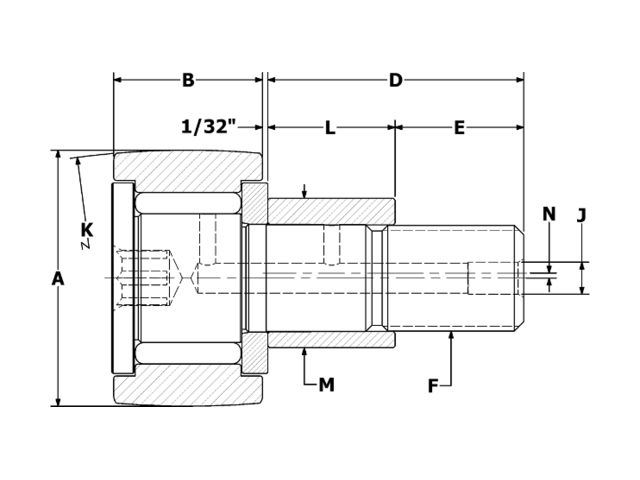

CCNBE-60-B 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CCNBE-60-B
Roller O.D. A 1.875
Roller Width B 1.000
Crown Radius K 20
Stud Length D 1.750
Thread Length E 7/8
Thread Class 2A F 3/4-16
Oil Hole Center G 7/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.875
Bushing Diameter M 1.000
Eccentric offset N 0.030
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 1.003
**Recom. Torque Inch Pounds 625
Max Static Capacity (lbf) 7,920
Basic Dynamic Rating (lbf) 6,385
Limiting Speed (RPM) 2,000

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
