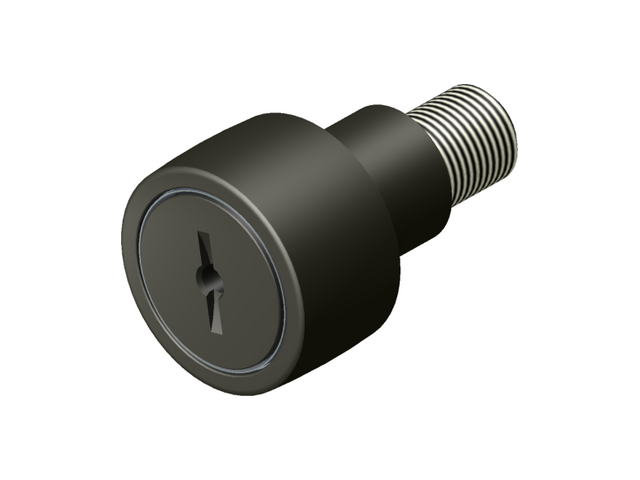

CCNBE-S -Standard Crowned Slotted Eccentric Sealed Cam Follower

PDF Download

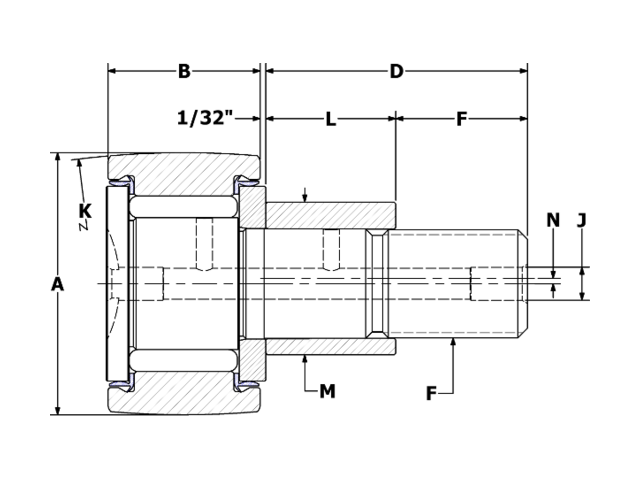

CCNBE-52-S 2D CAD Drawing


Roller O.D. A 1.625
Roller Width B 0.875
Crown Radius K 20
Stud Diameter C 0.625
Stud Length D 1.500
Thread Length E 3/4
Thread Class 2A F 5/8-18
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.750
Bushing Diameter M 0.875
Eccentric offset N 0.030
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.878
**Recom. Torque Inch Pounds 325
Max Static Capacity (lbf) 5,640
Basic Dynamic Rating (lbf) 4,840
Limiting Speed (RPM) 2,350

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
