CCNBE-52-B

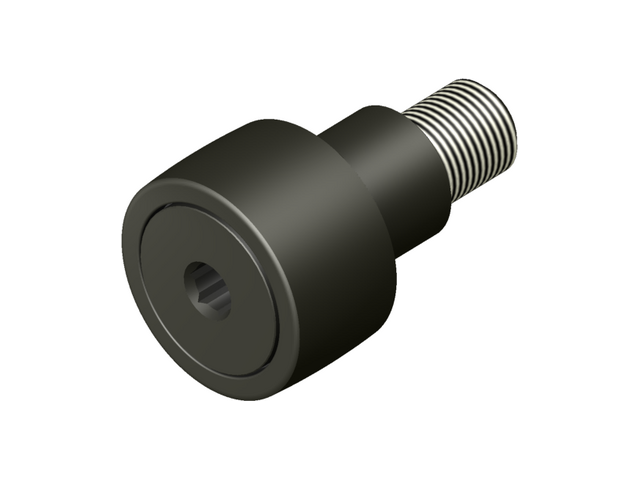

CCNBE-B -Standard Crowned Hexed Eccentric Unsealed Cam Follower

Please call 616-842-8760 for price and availability

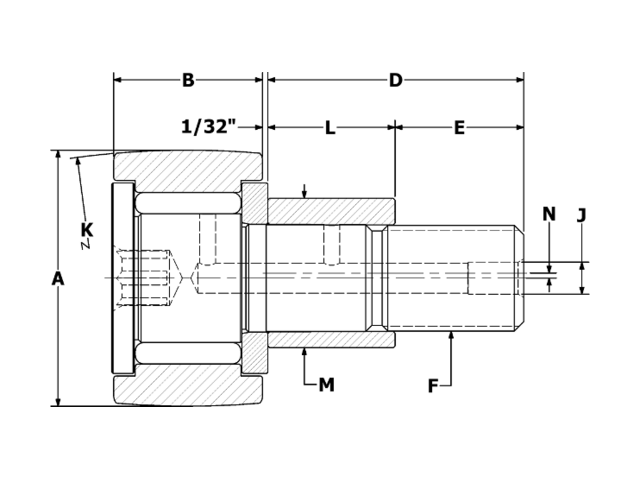

Specifications

ID CCNBE-52-B
Roller O.D. A 1.625
Roller Width B 0.875
Crown Radius K 20
Stud Diameter C 0.625
Stud Length D 1.500
Thread Length E 3/4
Thread Class 2A F 5/8-18
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.750
Bushing Diameter M 0.875
Eccentric offset N 0.030
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.878
**Recom. Torque Inch Pounds 650
Max Static Capacity (lbf) 5,640
Basic Dynamic Rating (lbf) 4,840
