CCNBE-44-S

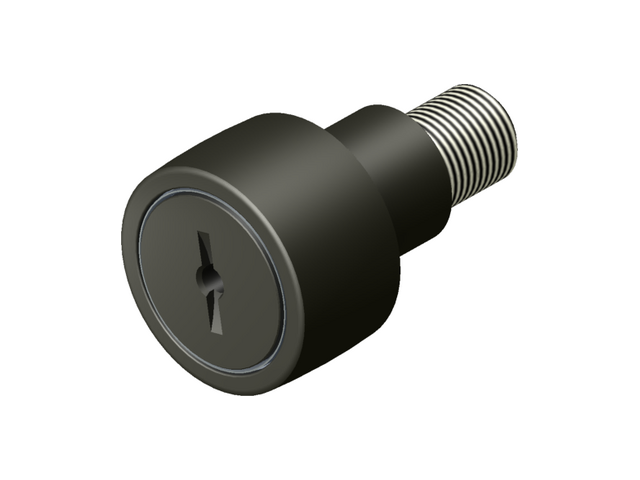

CCNBE-S -Standard Crowned Slotted Eccentric Sealed Cam Follower

Please call 616-842-8760 for price and availability

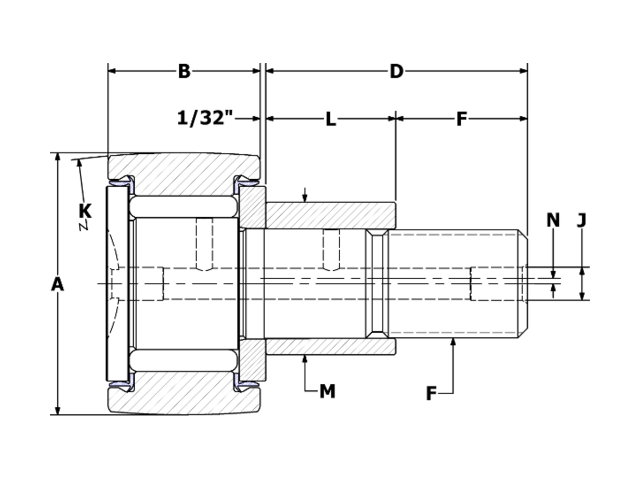

Specifications

ID CCNBE-44-S
Roller O.D. A 1.375
Roller Width B 0.750
Crown Radius K 14
Stud Diameter C 0.500
Stud Length D 1.250
Thread Length E 5/8
Thread Class 2A F 1/2-20
Oil Hole Center G 5/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.625
Bushing Diameter M 0.687
Eccentric offset N 0.030
Min. Boss Diameter 49/64
Mounting Bore Diameter (recommended) 0.690
**Recom. Torque Inch Pounds 350
Max Static Capacity (lbf) 4,250
Basic Dynamic Rating (lbf) 3,930
