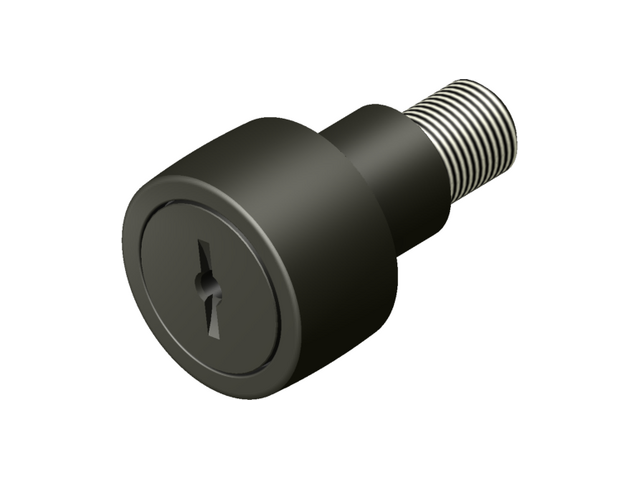

CCNBE -Standard Crowned Slotted Eccentric Unsealed Cam Follower

PDF Download

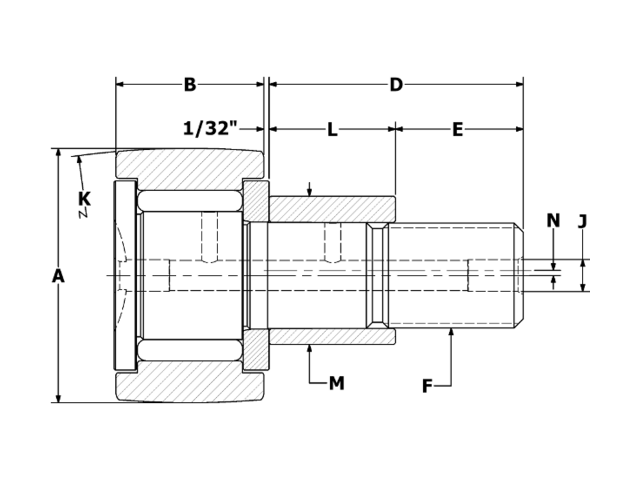

CCNBE-40 2D CAD Drawing


Roller O.D. A 1.250
Roller Width B 0.750
Crown Radius K 14
Stud Diameter C 0.500
Stud Length D 1.250
Thread Length E 5/8
Thread Class 2A F 1/2-20
Oil Hole Center G 5/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.625
Bushing Diameter M 0.687
Eccentric offset N 0.030
Min. Boss Diameter 49/64
Mounting Bore Diameter (recommended) 0.690
**Recom. Torque Inch Pounds 175
Max Static Capacity (lbf) 4,250
Basic Dynamic Rating (lbf) 3,930
Limiting Speed (RPM) 3,100

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
