CCNBE-28-S

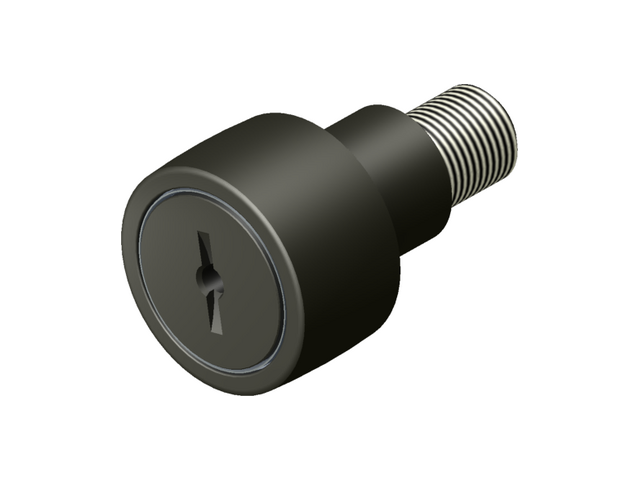

CCNBE-S -Standard Crowned Slotted Eccentric Sealed Cam Follower

Please call 616-842-8760 for price and availability

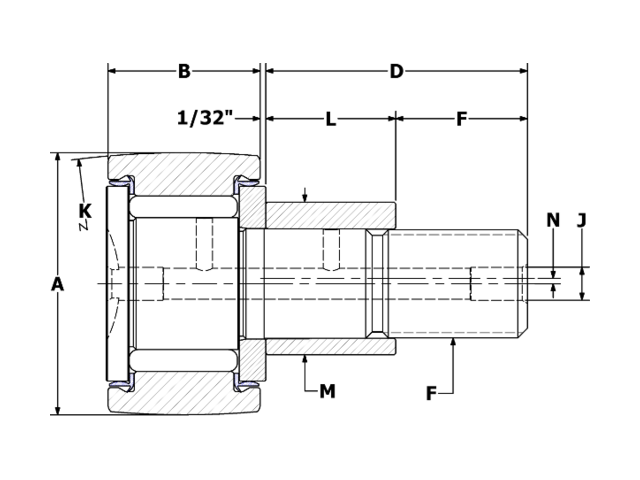

Specifications

ID CCNBE-28-S
Roller O.D. A 0.875
Roller Width B 0.500
Crown Radius K 10
Stud Diameter C 0.375
Stud Length D 0.875
Thread Length E 3/8
Thread Class 2A F 3/8-24
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.500
Bushing Diameter M 0.500
Eccentric offset N 0.015
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.503
**Recom. Torque Inch Pounds 95
Max Static Capacity (lbf) 2,065
Basic Dynamic Rating (lbf) 1,660
