CCNBE-20-S

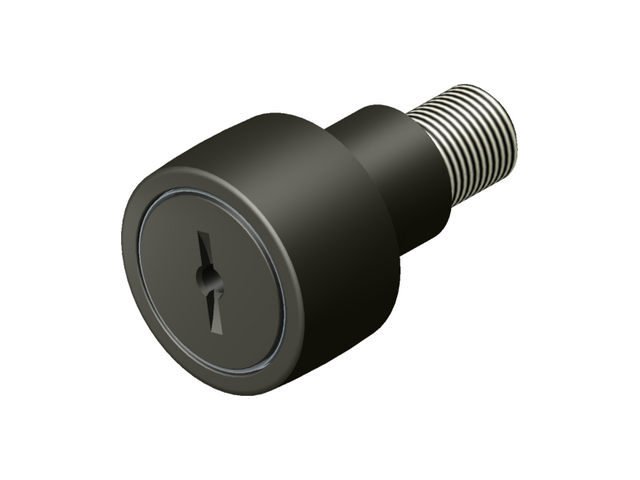

product photo ccnbe s

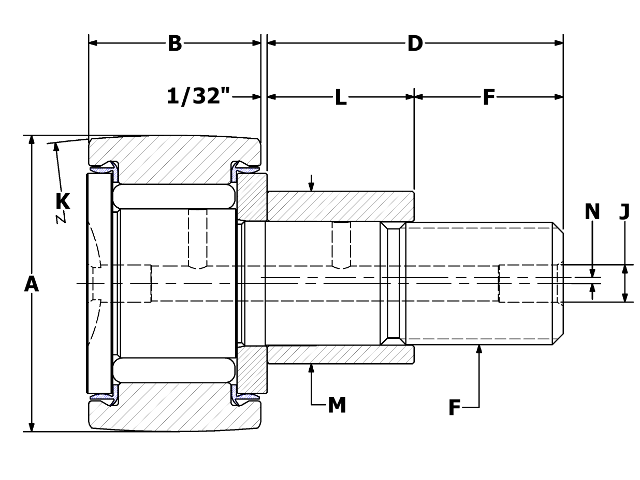

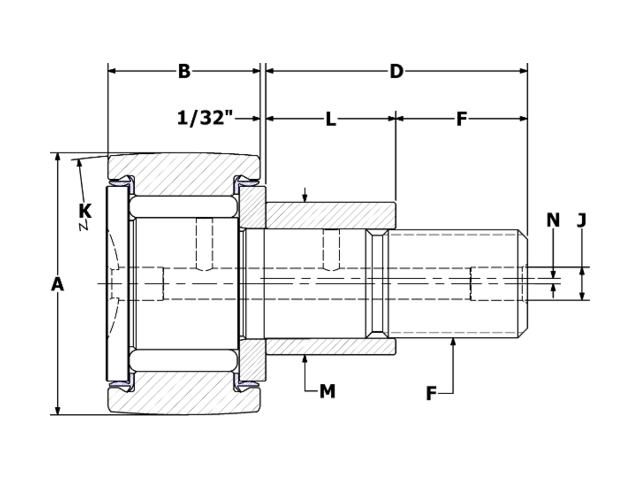

product diagram ccnbe s

Standard stainless crowned hexed sealed cam follwer

CCNBE-20-S

Looks like the information for this item is currently unavailable online.

Please call our sales department at +1 (616) 842-8760 or send an email to sales@carterbearings.com for more information.

Specifications

AttributeCalloutValue
Roller O.D. A 0.625 in
Roller Width B 0.4375 in
Stud Length D 0.750 in
M.E.T. E 5/16 in
Thread Class 2A F 1/4-28
Lube Fitting Size J 1/8
Crown Radius K 8 in
Bushing Length L 0.437
Bushing Diameter M 0.375
Eccentric Offset N 0.015
Approx Weight 0.06 lbs
Basic Dynamic Rating 955 lbf
Limiting Speed 9,200 RPM
Max Static Capacity 1,215 lbf
Min. Boss Diameter 23/64
Mounting Bore 0.378
Torque (in-lb) 17.5
