CCNBE-20-B

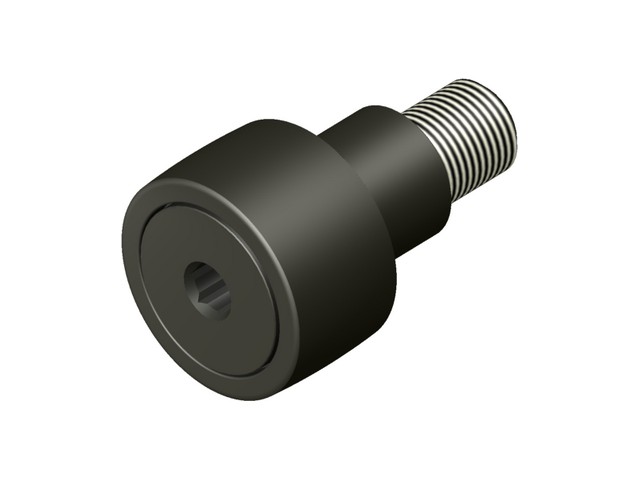

CCNBE-B -Standard Crowned Hexed Eccentric Unsealed Cam Follower

Please call 616-842-8760 for price and availability

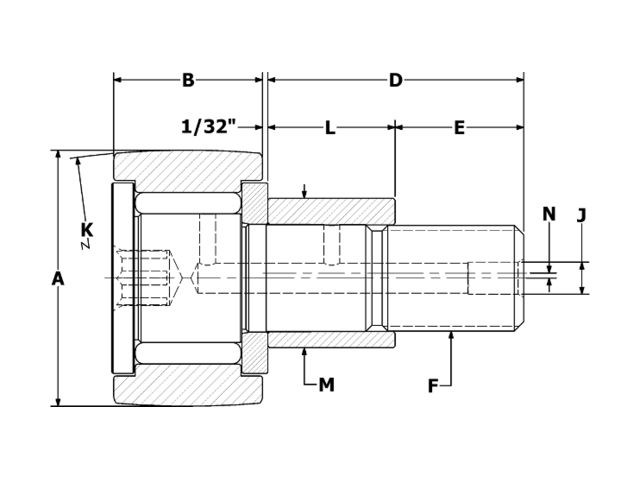

Specifications

ID CCNBE-20-B
Roller O.D. A 0.625
Roller Width B 0.4375
Crown Radius K 8
Stud Diameter C 0.250
Stud Length D 0.750
Thread Length E 5/16
Thread Class 2A F 1/4-28
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Bushing Length L 0.437
Bushing Diameter M 0.375
Eccentric offset N 0.015
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.378
**Recom. Torque Inch Pounds 35
Max Static Capacity (lbf) 1,215
Basic Dynamic Rating (lbf) 995
