CCNBE-16-NSB

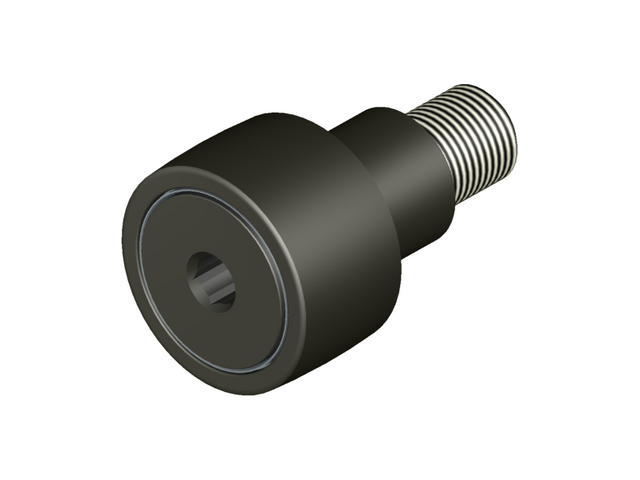

CCNBE-SB -Standard Crowned Hexed Eccentric Sealed Cam Follower

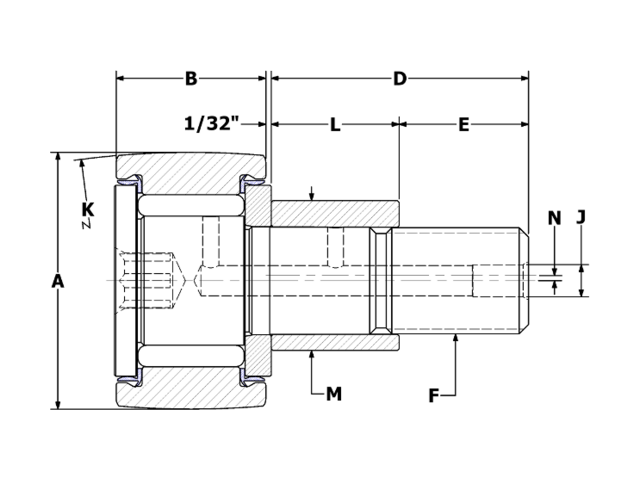

Specifications

ID CCNBE-16-NSB
Roller O.D. A 0.500
Roller Width B 0.344
Crown Radius K 7
Stud Diameter C 0.190
Stud Length D 0.500
Thread Length E 1/4
Thread Class 2A F 10-32
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Bushing Length L 0.250
Bushing Diameter M 0.250
Eccentric offset N 0.010
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.253
**Recom. Torque Inch Pounds 15
Max Static Capacity (lbf) 720
Basic Dynamic Rating (lbf) 620
