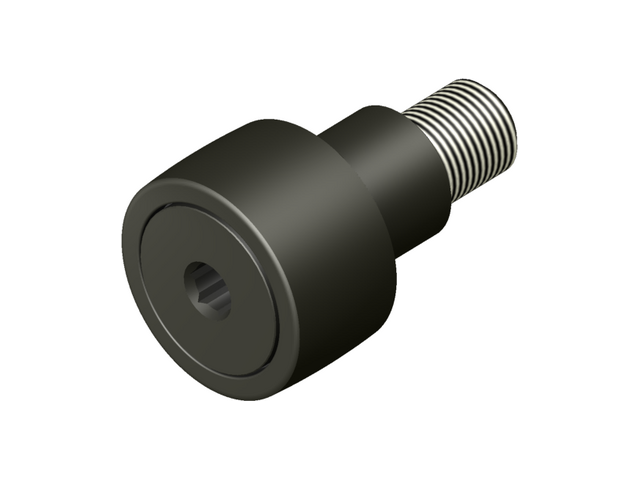

CCNBE-B -Standard Crowned Hexed Eccentric Unsealed Cam Follower

PDF Download

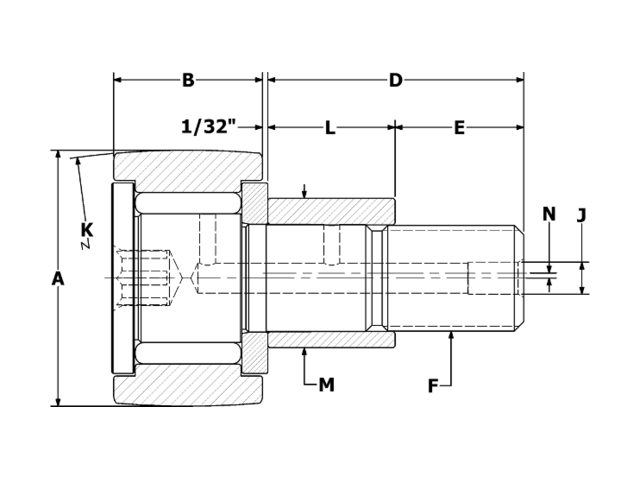

CCNBE-16-NB 2D CAD Drawing


Roller O.D. A 0.500
Roller Width B 0.344
Crown Radius K 7
Stud Diameter C 0.190
Stud Length D 0.500
Thread Length E 1/4
Thread Class 2A F 10-32
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Bushing Length L 0.250
Bushing Diameter M 0.250
Eccentric offset N 0.010
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.253
**Recom. Torque Inch Pounds 7.5
Max Static Capacity (lbf) 720
Basic Dynamic Rating (lbf) 620
Limiting Speed (RPM) 11,500

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
