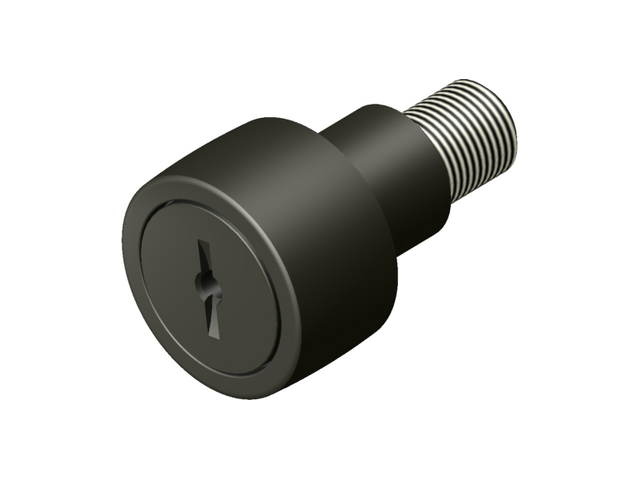

CCNBE -Standard Crowned Slotted Eccentric Unsealed Cam Follower

PDF Download

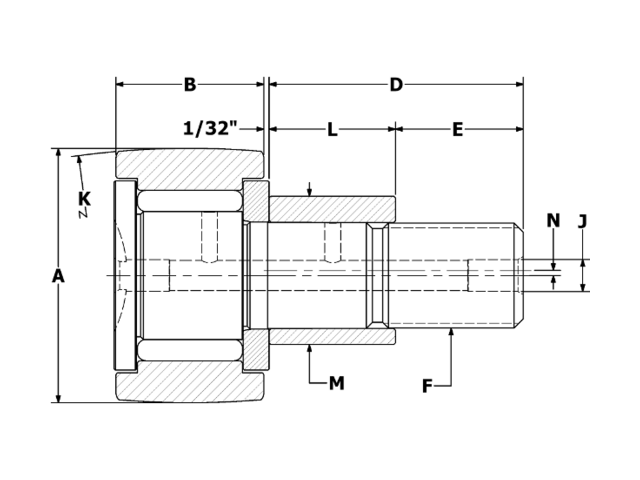

CCNBE-128 2D CAD Drawing


Roller O.D. A 4.000
Roller Width B 2.250
Crown Radius K 30
Stud Diameter C 1.500
Stud Length D 3.500
Thread Length E 1 1/2
Thread Class 2A F 1 1/2-12
Oil Hole Center G 3/4
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Bushing Length L 2.000
Bushing Diameter M 2.000
Eccentric offset N 0.060
Min. Boss Diameter 2 9/32
Mounting Bore Diameter (recommended) 2.003
**Recom. Torque Inch Pounds 2500
Max Static Capacity (lbf) 44,770
Basic Dynamic Rating (lbf) 29,985
Limiting Speed (RPM) 700

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
