CCNBE-104-B

CCNBE-B -Standard Crowned Hexed Eccentric Unsealed Cam Follower

PDF Download

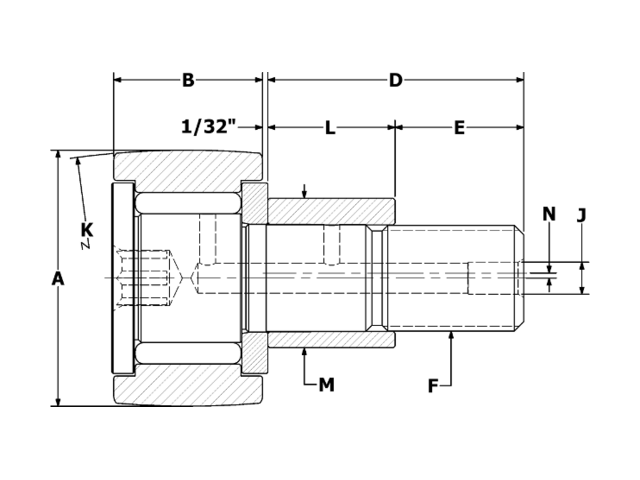

CCNBE-104-B 2D CAD Drawing

Specifications

ID CCNBE-104-B
Roller O.D. A 3.250
Roller Width B 1.750
Crown Radius K 30
Stud Diameter C 1.250
Stud Length D 2.500
Thread Length E 1 1/4
Thread Class 2A F 1 1/4-12
Oil Hole Center G 5/8
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Bushing Length L 1.250
Bushing Diameter M 1.750
Eccentric offset N 0.060
Min. Boss Diameter 1 3/4
Mounting Bore Diameter (recommended) 1.753
**Recom. Torque Inch Pounds 1725
Max Static Capacity (lbf) 24,910
Basic Dynamic Rating (lbf) 15,720
Limiting Speed (RPM) 880

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
