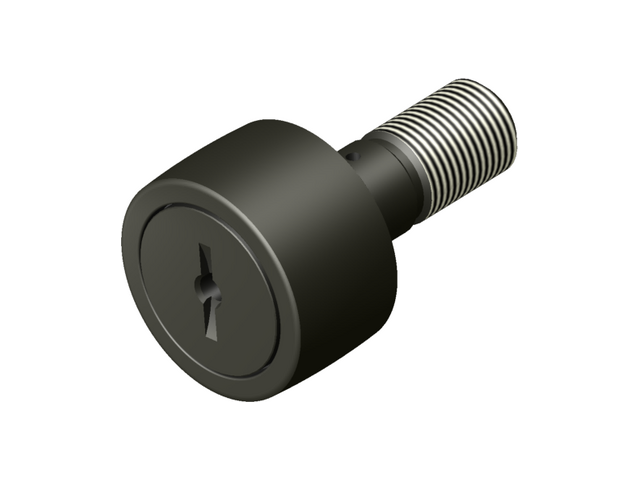

CCNB -Standard Crowned Slotted Unsealed Cam Follower

PDF Download

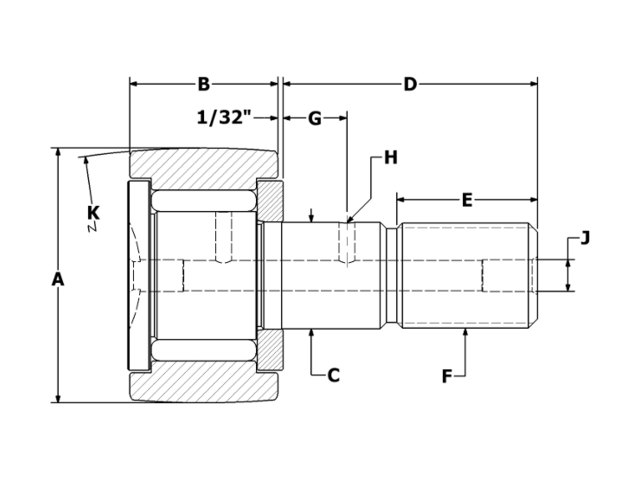

CCNB-96 2D CAD Drawing


Roller O.D. A 3.000
Roller Width B 1.750
Crown Radius K 30
Stud Diameter C 1.250
Stud Length D 2.500
M.E.T. E 1 1/4
Thread Class 2A F 1 1/4-12
Oil Hole Center G 5/8
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Min. Boss Diameter 1 3/4
Mounting Bore Diameter (recommended) 1.250
**Recom. Torque Inch Pounds 1725
Max Static Capacity (lbf) 24,910
Basic Dynamic Rating (lbf) 15,720
Limiting Speed (RPM) 950

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
