CCNB-88-S
CCNB-S -Standard Crowned Slotted Sealed Cam Follower

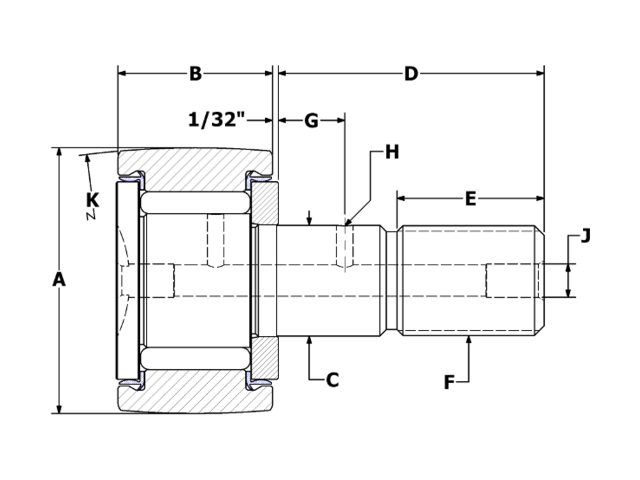

2D Drawings
Need a Bearing for a Special Application?
Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information
Specifications
| ID | CCNB-88-S | |
|---|---|---|
| Roller O.D. | A | 2.750 |
| Roller Width | B | 1.500 |
| Crown Radius | K | 30 |
| Stud Diameter | C | 1.000 |
| Stud Length | D | 2.250 |
| M.E.T. | E | 1 1/8 |
| Thread Class 2A | F | 1-14 |
| Oil Hole Center | G | 9/16 |
| Oil Hole Diameter | H | 1/8 |
| Lube Fitting Size | J | 3/16 |
| Min. Boss Diameter | 1 5/16 | |
| Mounting Bore Diameter (recommended) | 1.000 | |
| **Recom. Torque Inch Pounds | 1125 | |
| Max Static Capacity (lbf) | 16,450 | |
| Basic Dynamic Rating (lbf) | 11,720 | |
| Limiting Speed (RPM) | 1,050 |
**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
