CCNB-80-S

CCNB-S -Standard Crowned Slotted Sealed Cam Follower

PDF Download

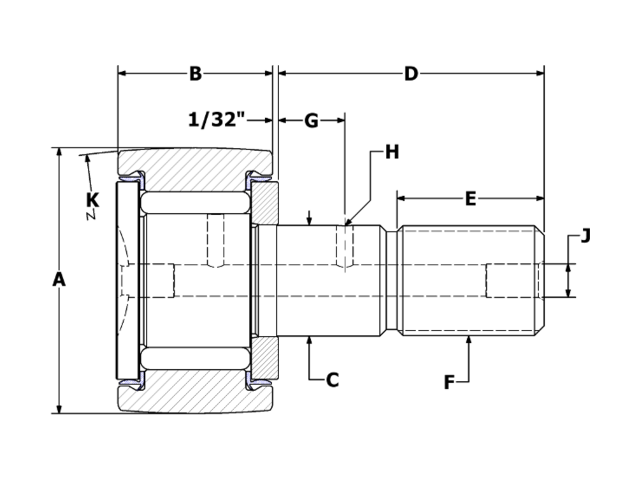

CCNB-80-S 2D CAD Drawing

Specifications

ID CCNB-80-S
Roller O.D. A 2.500
Roller Width B 1.500
Crown Radius K 30
Stud Diameter C 1.000
Stud Length D 2.250
M.E.T. E 1 1/8
Thread Class 2A F 1-14
Oil Hole Center G 9/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.000
**Recom. Torque Inch Pounds 1125
Max Static Capacity (lbf) 16,450
Basic Dynamic Rating (lbf) 11,720
Limiting Speed (RPM) 1,100

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
