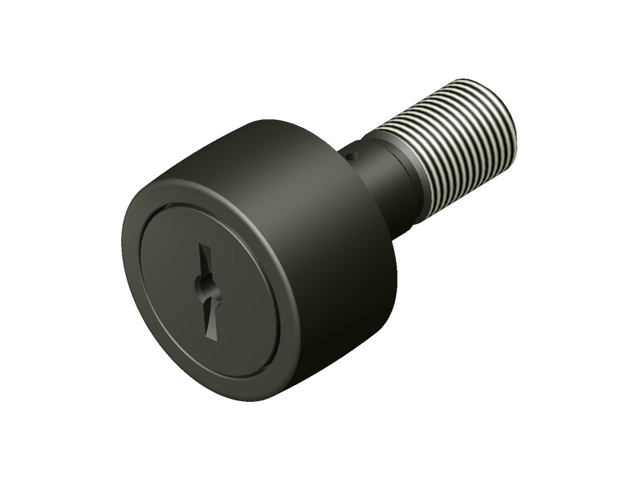

CCNB -Standard Crowned Slotted Unsealed Cam Follower

PDF Download

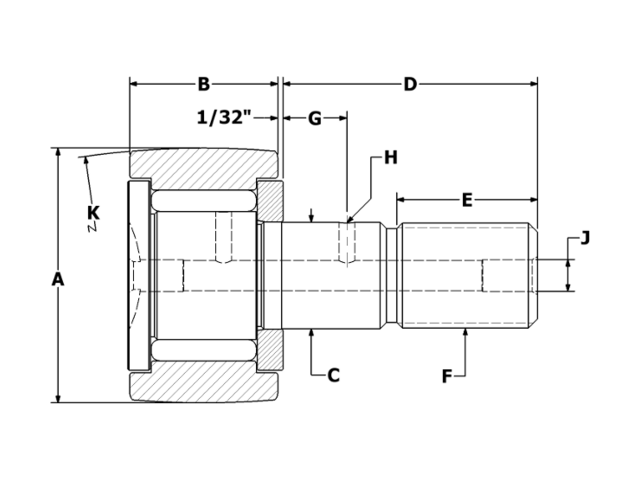

CCNB-64 2D CAD Drawing


Roller O.D. A 2.000
Roller Width B 1.250
Crown Radius K 24
Stud Diameter C 0.875
Stud Length D 2.000
M.E.T. E 1
Thread Class 2A F 7/8-14
Oil Hole Center G 1/2
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Min. Boss Diameter 1 13/64
Mounting Bore Diameter (recommended) 0.875
**Recom. Torque Inch Pounds 750
Max Static Capacity (lbf) 10,570
Basic Dynamic Rating (lbf) 8,090
Limiting Speed (RPM) 1,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
