CCNB-60-B

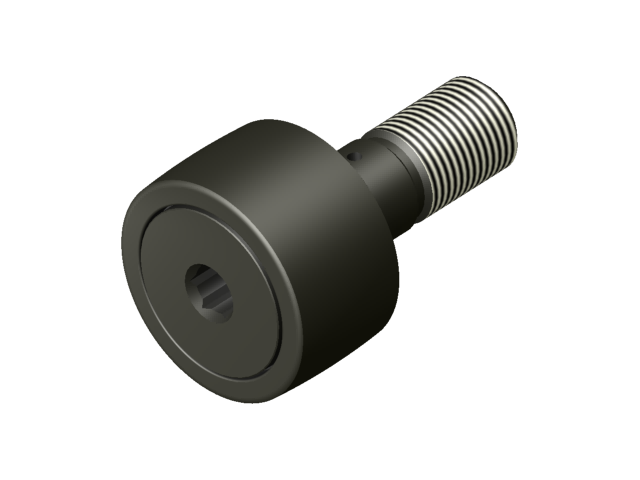

CCNB-B -Standard Crowned Hexed Unsealed Cam Follower

Please call 616-842-8760 for price and availability

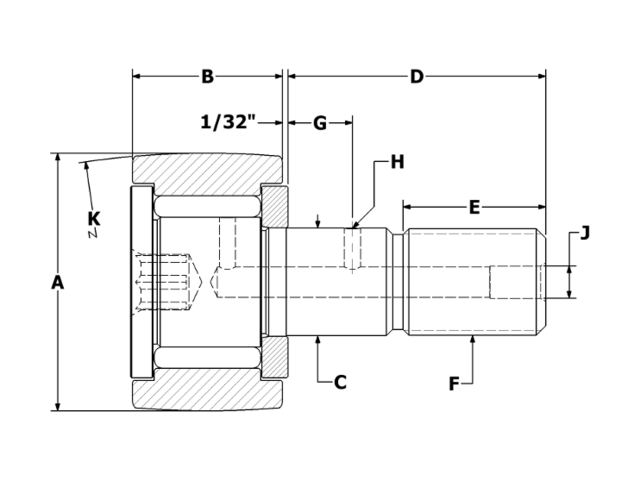

Specifications

ID CCNB-60-B
Roller O.D. A 1.875
Roller Width B 1.000
Crown Radius K 20
Stud Diameter C 0.750
Stud Length D 1.750
M.E.T. E 7/8
Thread Class 2A F 3/4-16
Oil Hole Center G 7/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 0.750
**Recom. Torque Inch Pounds 1,250
Max Static Capacity (lbf) 7,920
Basic Dynamic Rating (lbf) 6,385

Downloads

CCNB-60-B STP File

CCNB-60-B IGES File

CCNB-60-B PDF File

3D View
